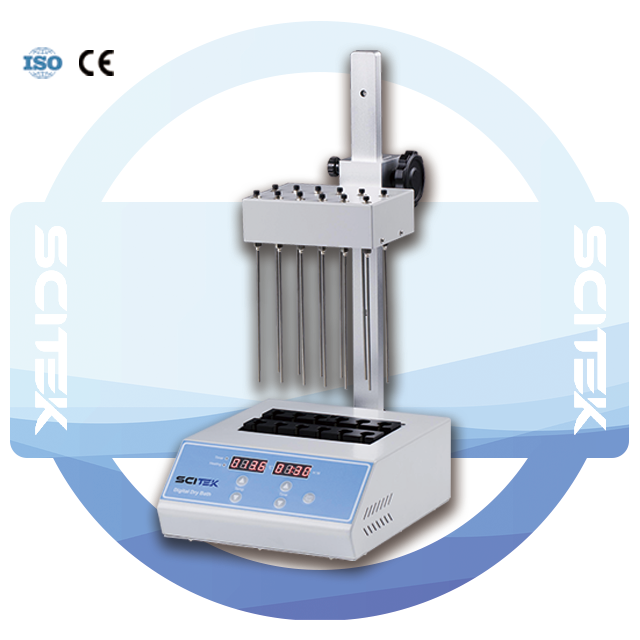

This visible sample concentrator stands out with its advanced visible light sample concentration technology. Visible operation allows you to monitor and adjust the concentration process of your samples in real time, ensuring the accuracy and consistency of your experimental data.
The visible sample concentrator uses advanced technology to rapidly concentrate samples in a short period of time, saving experimental time. It works by blowing nitrogen into the surface of a heated sample under oxygen-free conditions to accelerate the evaporation and separation of solvents from the sample. The tubes are held in a block and processing multiple samples simultaneously saves time and labor. It helps obtain consistent sample concentration and quality, reducing experiment variability.
| Model | SC-V400 | ||
|---|---|---|---|
| Temp. Range | RT.+5°C -160°C | ||
| Temp. Accuracy | ±0.5℃ (At 40℃); ±1℃ (At 120℃) | ||
| Temp. Uniformity | ±0.5℃ | ||
| Display Accuracy | 0.1℃ | ||
| Time Range | 1-99h59min | ||
| Heating Time | ≤15min (From 25℃ to 160℃) | ||
| Max Vertical Travel | 150mm | ||
| Nitrogen Flow Rate | 15L/min | ||
| Nitrogen Pressure | 0.1Mpa | ||
| Block Qty | 1 | ||
| Max Consumption | 500W | ||
| Power Supply | AC220/110V, 50/60Hz | ||
| Size (W×D×H)(mm)(Without the Heating Block) | 260x220x475 | ||
| Shipping Size(W×D×H)(mm) | 450x440x360 | ||
| N.W./G.W. (kg) | 7.3/11 | ||
| Optional blocks | |||
| Model | Diameter(mm) | Depth(mm) | Capacity |
| RC02 027 001 | 10.5 | 50 | 12 |
| RC02 027 002 | 12.5 | 50 | 12 |
| RC02 027 003 | 13.5 | 50 | 12 |
| RC02 027 004 | 15.5 | 50 | 12 |
| RC02 027 005 | 16.5 | 50 | 12 |
| RC02 027 006 | 19.5 | 50 | 12 |
| RC02 027 007 | 20.5 | 50 | 12 |
