Designed for anesthesia of small and medium animals weighing 1–25 kg.

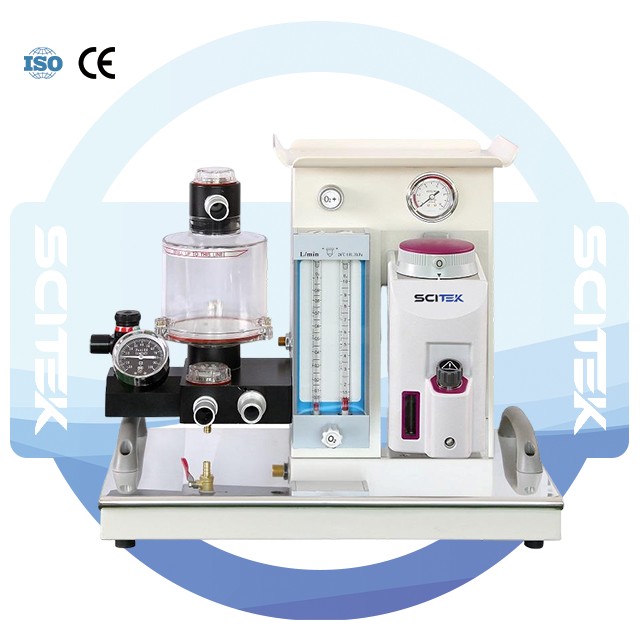

The veterinary anesthesia machine is a compact, integrated structure that enables easy movement and quick installation, suitable for both fixed and mobile applications. The stainless steel work surface offers long-term durability, corrosion resistance, and reduced maintenance requirements.
| Model | VAM-T60 | |
| Main Unit | Breathing Mode | Manual, Touch Control (requires adaptation to anesthesia ventilator) |
| Working Mode | Closed, Hand-closed, Semi-open | |
| Oxygen Flush | 25–75 L/min | |
| Airway Pressure (O₂) | 0.32–0.6 MPa | |
| Flow Meter (O₂) | Dual tube flow meter: 0–1 L/min, 1–10 L/min | |
| Anesthesia Breathing System | Proprietary Patent Integrated Sodium Lime CO₂ Absorption System (Can be Sterilized at High Temperature) | |
| Anesthesia Gas Scavenging System (Optional) | ||
| Mild Bain circuit, suitable for open anesthesia | ||
| Vaporizer | Type & Reagents | One high-precision vaporizer (for Enflurane, Halothane, Isoflurane, Sevoflurane) |
| Sevoflurane: 0–8 vol%; Halothane: 0–5 vol%; Isoflurane: 0–5 vol%; |
||
| Safety System | Self-lock and interlock | |
| Compensation | Automatic compensation for flow, temperature, and pressure | |
| Capacity | ≥ 250 mL | |
| Anesthesia Ventilator (Optional) | |
| Display | High-luminance LED display |
| Accessories | 1 set of fan |
| Working Principle | Pneumatically driven, electrically controlled |
| Monitoring Parameters | Tidal volume, respiratory frequency, I:E ratio, peak airway pressure |
| Breathing State | Manual, Touch Control (IPPV) |
| Tidal Volume | 0.50–1500 mL |
| Respiratory frequency | 2–99 bpm |
| I:E Ratio | 5:1–1:8 (adjustable) |
| Synchronicity Trigger Pressure | -2–0 kPa |
| High Pressure Limitation | 2–6 kPa |
| Low Pressure Limitation | 0–2 kPa |
