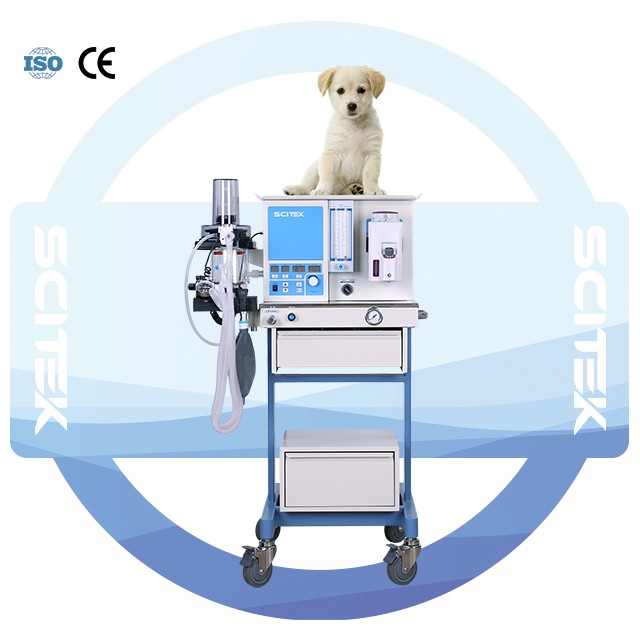

Designed for anesthesia of small, medium, and large animals weighing 1–60 kg.
Application:
Designed to deliver safe and effective inhalation anaesthesia across a wide range of animal patients, the Veterinary Anaesthesia Machine is a versatile and essential solution for modern veterinary practices. It is primarily used to provide precise anaesthesia management for small, medium and large animals weighing between 1 kg and 60 kg.
Advantage:
Specification:
| Model | VAM-F60 |
| Main unit | Working mode: For the closed system, half-closed system and half–open system |
| Airway pressure (O₂): 0.32–0.6 MPa | |
| Flow Meter (O₂): 2-tube, 15–75 L/min | |
| Integrated design, orderliness respiratory loop | |
| Automatic compensation of flow, temperature and pressure | |
| Vaporizer | One high precise vaporizers (Halothane, Isoflurane, Sevoflurane) |
| Automatic compensation of flow, temperature and pressure | |
| Self-lock and interlock | |
| Volume: ≥250 mL | |
| Loop | Integrated design, orderliness respiratory loop |
| Quick and easy replacement | |
| Intellectual property rights | |
| Anesthesia Gas Scavenging System (Optional) | |
| Advanced Bain loop design, saving oxygen and anesthesia | |
| Anesthesia Ventilator | Pneumatically driven and electrically controlled |
| High-luminance LED display | |
| Working Mode: Manual control or Automatic control | |
| Tidal Volume: 0.50–1500 mL | |
| Respiratory Frequency: 2–60 bpm | |
| I:E: 5:1–1:8 (adjustable) | |
| Ptrig: -2–0 kPa | |
| High Pressure Limitation: 2–6 kPa | |
| Monitoring Parameters: Tidal volume, respiratory frequency, I:E ratio, peak airway pressure |
