Designed for anesthesia of small, medium, and large animals weighing 1–100 kg.
Application:

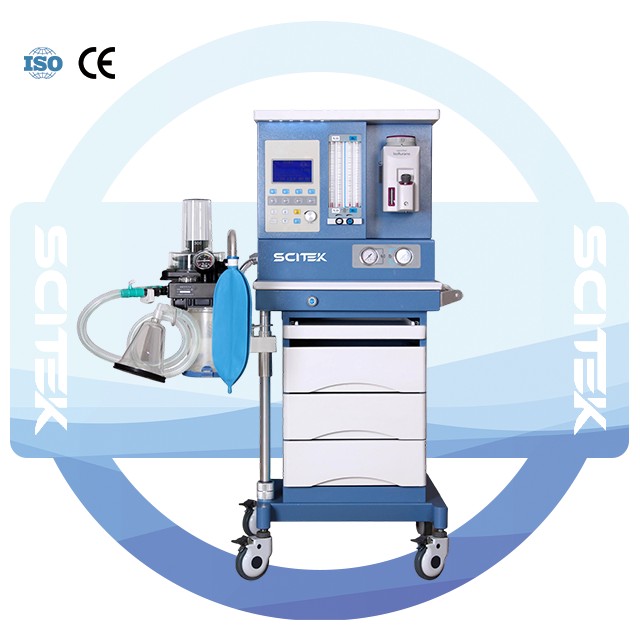

The Veterinary Anesthesia Machine is designed for safe and efficient anesthesia administration to small, medium, and large animals weighing 1-100kg. It features a rugged metal enclosure, a highlight ceiling lighting system, and a retractable WordPad to save space. The machine includes a proprietary direct flow anesthesia interface for small animals, a standard Bain loop, and a dedicated pet anesthesia mask, ensuring versatility and ease of use during various veterinary procedures.
Advantage:
Specification:
| Model | VAM-F100 | |
| Main Unit | For the closed system, half-closed system and half–open system | |
| Alarms Parameters | Upper and lower airway pressure alarm; Upper and lower tidal volume alarm; Lack of oxygen alarm; Apnea; power outages | |
| CO2 absorber | Ntegrated design, orderliness respiratory loop | |
| Vaporizer | One high precise vaporizers (Enflurane, Halothane, Isoflurane, Sevoflurane） | |
| Automatic compensation of flow, temperature and pressure | ||
| Self-lock and interlock | ||
| Volume | ≥250 mL | |
| Loop | Integrated design, orderliness respiratory loop | |
| Quick and easy replacement | ||
| Intellectual property rights | ||
| Anesthesia Gas Scavenging System (Optional) | ||
| Advanced Bain loop design, saving oxygen and anesthesia | ||
| Anesthesia Ventialtor | Pneumatically driven and electrically controlled, high-luminance LCD display, and keys conditioning means | |
| Monitoring Parameters | Tidal volume, the respiratory rate, I/E Ratio, the peak airway pressure, airway pressure wavefrom | |
| Working Mode | Manual control or automatic control | |
| Ventilation Modes | IPPV, SIGH, SIMV/f/2, SIPPV | |
| Tidal Volume | 0.50–1500 mL | |
| Respiratory Frequency | 2–99 bpm | |
| I:E: | 5:1–1:8 (adjustable) | |
| Ptrig | -2–0 kPa | |
| High Pressure Limitation | 2–6 kPa | |
| Low Pressure Limitation | 0–2 kPa | |
