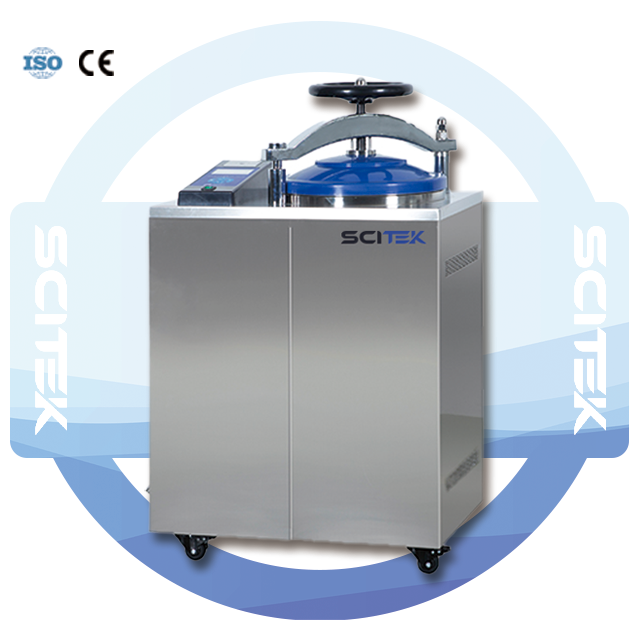

Vertical Pulse Vacuum Autoclave Feature:

The handwheel panning and quick-open design enable fast operation, while microcomputer control allows flexible parameter settings.
Three-time Pre-evacuation.
The vertical pulse vacuum steam autoclave features a stainless steel drum or basket, offering excellent corrosion resistance.
The LED touchscreen display and standard test interface make parameter settings and monitoring quick and easy.
Self-expanding seal ensures secure sealing.

Vertical Pulse Vacuum Autoclave Specification:

Model	ST-V35PVM	ST-V50PVM	ST-V75PVM	ST-V100PVM
Volume	35L	50L	75L	100L
Power	3.5kW	3.5kW	4.5kW	4.5kW
Voltage	AC 220V, 50HZ
Design Pressure	0.25Mpa
Design Temperature	139℃
Rated Working Pressure	0.22Mpa
Rated Working Temperature	134℃
Sterilization Temperature	116℃~134℃
Sterilization Time Setting Range	4~120 min
Temp Accuracy	±1℃
Drying Time Setting Range	0~240min
Chamber Size (mm)	Ø350×400	Ø400×505	Ø400×655	Ø450×650
Bucket Size	Ø330×320	Ø380×430	Ø380×560	Ø420×540
Basket Size (optional)	Ø320×350	Ø360×280×1	Ø360×280×2	Ø410×300×2
Sizes(W×D×H)(mm)	698×498×940	630×500×1180	725×525×1180	760×560×1260
Shipping Size	790x610x1130	800x600x1230	840x610x1310	870x650x1380
(W×D×H)(mm)	790x610x1130	800x600x1230	840x610x1310	870x650x1380
N.W./G.W. (kg)	115/130	118/138	124/150	132/160
