- Model : ST-VX35; ST-VX50; ST-VX75; ST-VX100
- Volume : 35L; 50L; 75L; 100L
- Design Temperature : 139℃
- Rated Working Pressure : 0.22MPa
- Rated Working Temperature : 134℃

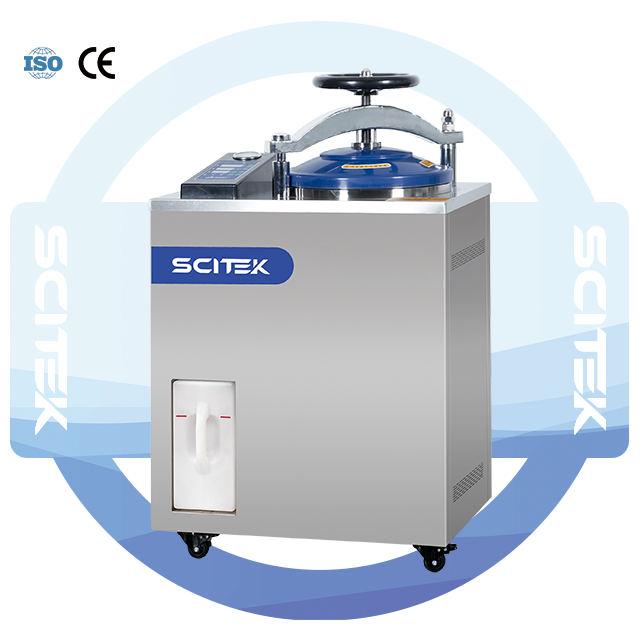

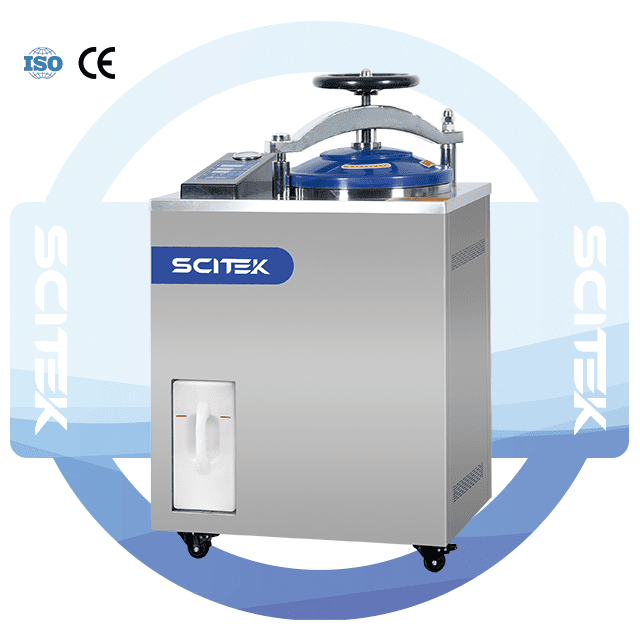

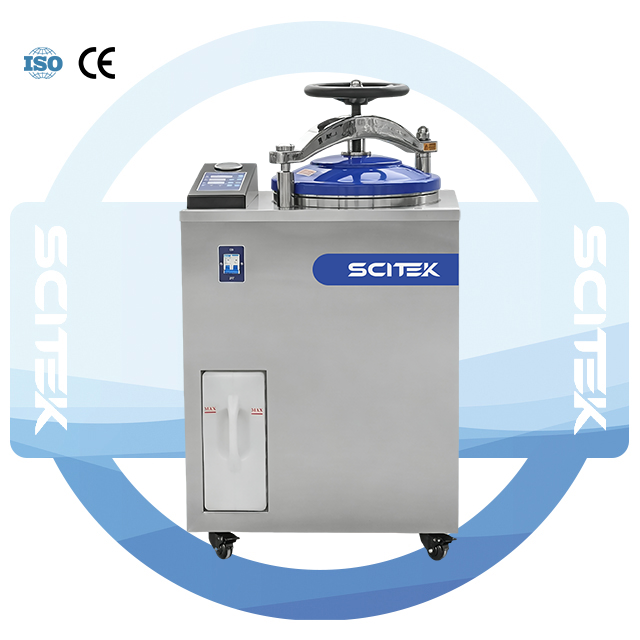

Vertical Pressure Steam Sterilizer VX Series
Vertical Pressure Steam Sterilizer Feature:
- Handwheel translation and quick-opening design
- Premium stainless steel construction
- Drying function included
- Microcomputer control with customizable sterilization settings
- Safety interlock system
- Digital display with touch controls
- Standard test interface
- Self-expanding seal
Vertical Pressure Steam Sterilizer Specification:
| Model | ST-VX35 | ST-VX50 | ST-VX75 | ST-VX100 |
| Volume | 35L | 50L | 75L | 100L |
| Power | 3.5kW | 3.5kW | 4.5kW | 4.5kW |
| Voltage | AC 220V, 50Hz | |||
| Design Pressure | 0.25MPa | |||
| Design Temperature | 139℃ | |||
| Rated Working Pressure | 0.22MPa | |||
| Rated Working Temperature | 134℃ | |||
| Sterilization Temperature Setting Range | 116℃~134℃ | |||
| Sterilization Time Setting Range | 4~120min | |||
| Drying Time Setting Range | 0~240min | |||
| Chamber Volume | Ø350×400 | Ø350×525 | Ø400×625 | Ø450×650 |
| Bucket Size | Ø330×320 | Ø330×460 | Ø380×560 | Ø420×540 |
| Basket Size | Ø350×400 | Ø350×525 | Ø400×625 | Ø450×650 |
| Outer Size | 698x498x940 | 630x500x1180 | 725x525x1170 | 788x588x1255 |
| Packing Size(LxWxH)(mm) | 790x610x1130 | 800x600x1230 | 840x610x1310 | 870x650x1380 |
| Gross Weight | 125kg | 130kg | 145kg | 156kg |
| Net Weight | 110kg | 112kg | 114kg | 129kg |
WHY SCITEK
- 24 Months Limited Warranty
- CE & FDA Standards
- 1-2 Days Handling and 7-30 Days Shipping
