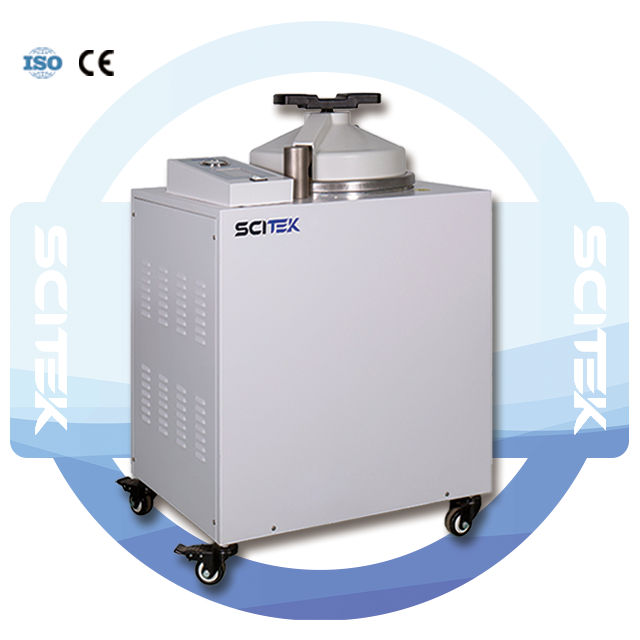

Vertical Pressure Steam Sterilizer Feature:

Overheat protection: Stops heating with alerts when overheated.
Anti-burn protection: Stops heating with alerts when water is low.
Interlock safety: Prevents operation if the door is open or chamber is pressurized.
Steam pressure valve: Activates if pressure exceeds the limit.
PID control: Automatic sterilization with LED display.
Positive pulsing: Ensures efficient air removal.

Vertical Pressure Steam Sterilizer Specification:

Model	ST-V50	ST-V80	ST-V100
Capacity	50L	80L	100L
External Size (WxDxH)(mm)	476x616x990	546x688x1030	566x708x1295
Chamber Size (ØxH)(mm)	Ø316×667	Ø386×695	Ø400×800
Chamber Material	SUS304
Sterilization Temperature	105~136 ℃
Designed Temperature	150℃
Max.Working Temperature	136 ℃
Dissolution Temperature	40~100℃
Warming Temperature	40~60℃
Temp. Accuracy	0.1℃
Designed Pressure	0.3Mpa
Max.Sterilization Pressure	0.23Mpa
Sterilization Time Range	0~99min
Temp. Controller	PID control by microprocessor
Display	LED display
Drying Function	YES
Drying Time	15min
Sterilization Program	●High temperature instrument program
	●Low temperature instrument program
	●Culture medium sterilization warming program
	●Culture medium dissolution warming program
Water Injection Method	Built-in water tank
Power Consumption	3KW	4.5KW	5.4KW
Power Supply	220V 50Hz	220V 50Hz	220V 50Hz
Standard SS Basket	2pcs	2pcs	2pcs
Net Weight	68kg	92kg	100kg
Gross Weight	103kg	127kg	140kg
Shipping Size (WxDxH)(mm)	730x820x1250	800x880x1300	800x880x1480
