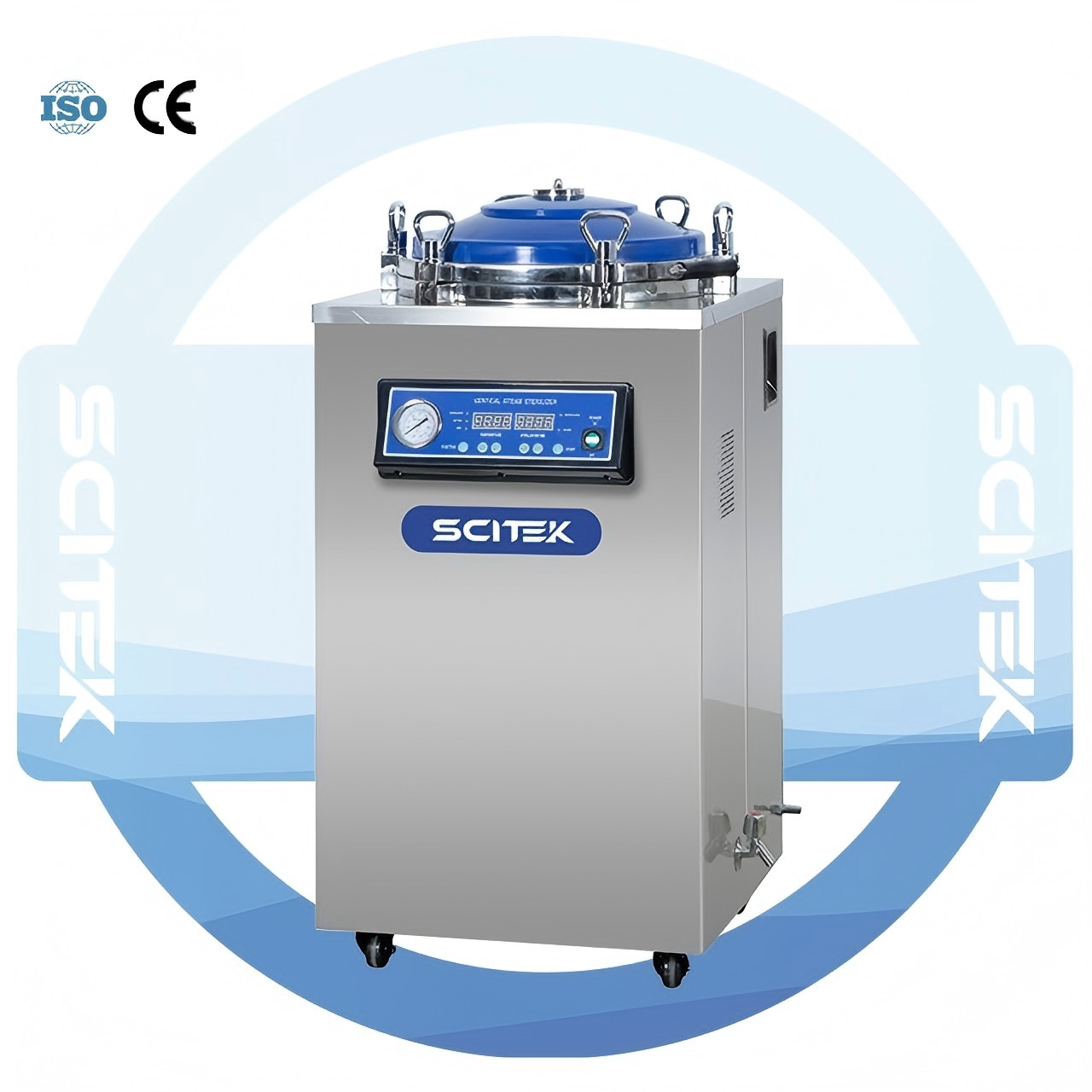

Vertical Pressure Steam Sterilizer, ST-VBS Series

Manufacturers and users should consider the impact of local atmospheric pressure on sterilizer parameter settings when using sterilizers.

Warning

/www/wwwroot/www.scitekuae.com/wp-includes/class-wp-hook.php

341

Vertical Pressure Steam Sterilizer Feature:

Bolt-type sealing mechanism
Microcomputer-controlled automatic sterilization with fully adjustable parameters
High-grade stainless steel construction
Digital display interface with capacitive touch controls
Comprehensive safety protection system: overtemperature cutoff, overpressure automatic steam release, low-water-level detection, and dry-run prevention
Audible completion alert with automatic shutdown upon cycle termination
Integrated cold-air purge, post-cycle steam exhaust, and internal steam recirculation

Sterilizer Specification:

Model	ST-V35BS	ST-V50BS	ST-V75BS	ST-V100BS	ST-V120BS	ST-V150BS
Capacity (L)	35	50	75	100	120	150
Consumption (kW)	2.5	3.5	4.5	4.5	4.5	6
Power Supply	AC 220/110 V, 50/60 HZ
Design Pressure	0.25 MPa
Design Temperature	139 ℃
Rated Working Pressure	0.22 MPa
Rated Working Temperature	134 ℃
Sterilization Temperature Setting Range	116~134 ℃
Sterilization Time Setting Range	4-120 min
Chamber Size (mm)	φ300×450	φ350×515	φ400×585	φ450×620	φ450×720	φ500×747
Bucket Size (mm)	φ275×395	φ325x235x2	φ375x265x2	φ425x275x2	φ425x315x2	φ475x365x2
External Size (mm)	436x473x850	544x536x985	586x576x1072	617x627x1135	617x627x1205	660x676x1255
Shipping Size (WxDxH) (mm)	550x500x900	580x630x1100	630x680x119	690x650x1230	690x650x1330	750x700x1370
Gross Weight (kg)	58	75	84	104	105	122
Net Weight (kg)	41	53	61	78	79	90
