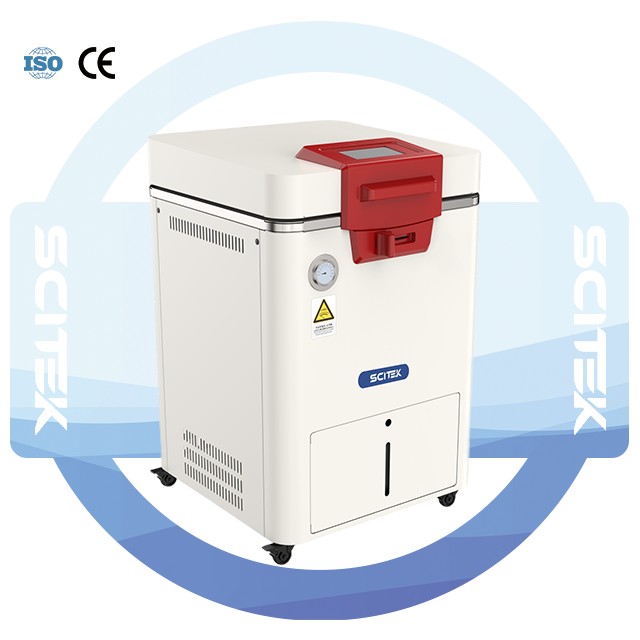

Vertical flip-top steam sterilizer with a flip-top structure can save more space. Moreover, this product is equipped with a 7-inch true-color touchscreen, which can display multiple important parameters simultaneously.
This sterilizer employs saturated steam as the sterilizing agent. Through gravity-assisted cold-air purge, saturated steam achieves complete penetration of load surfaces, thereby inactivating all microorganisms—including bacterial spores—under elevated temperature and pressure conditions. As a validated physical sterilization modality, it delivers consistently reliable efficacy. It is widely deployed across healthcare facilities, pharmaceutical and biotechnology laboratories, academic research institutions, agricultural science centers, and university teaching laboratories for the terminal sterilization of heat-stable materials, including surgical instruments, textile dressings, rubber goods, culture media, and aqueous solutions. Its applications span hospitals at all administrative levels, disease prevention and control centers, entry-exit inspection and quarantine agencies, and scientific research institutes engaged in life sciences and public health.

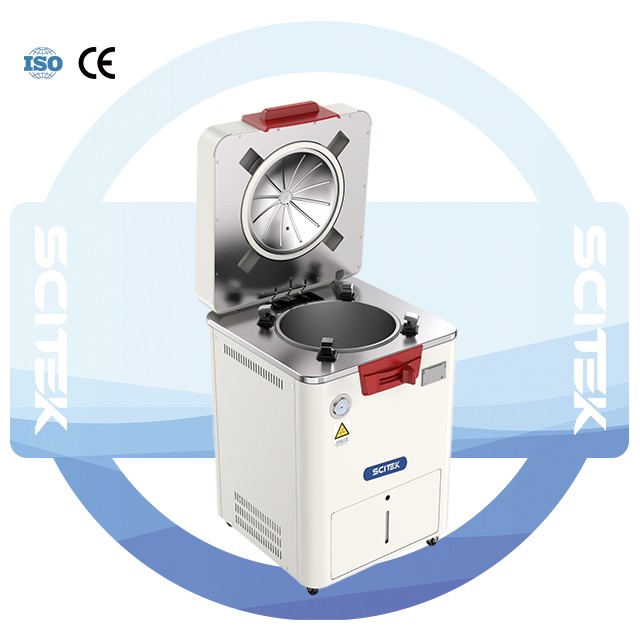

1. Flip-top lid with rapid-opening mechanism
2. Multi-point synchronized linkage clamping system ensures uniform sealing force distribution and enhanced door integrity
3. 7-inch full-color capacitive touchscreen interface displaying real-time sterilization parameters—including temperature, elapsed time, selected mode, door status, cycle progress, trend graphs, and active alarm indicators
4. Preconfigured library of 10 standard sterilization protocols and 2 user-definable protocols, supporting up to 200 programmable cycles; configurable protocol names and parameters aligned with specific load requirements; role-based access control with three-tiered user management (operator, administrator, senior administrator)
5. Time-scheduled execution: each sterilization program can be autonomously initiated at a user-defined start time
6. Integrated data logging capacity: 20,000 complete sterilization records stored internally; historical cycle data accessible via on-device review or exportable to USB storage media
7. Onboard F0 value calculation engine compliant with industry quantification
8. High-capacity forced-air cooling system with dedicated axial fan, enabling accelerated chamber cooldown during the post-sterilization cooling phase
| Model | ST-V60F | ST-V85F | ST-V100F |
| Capacity(L) | 60 | 85 | 100 |
| Design Pressure | 0.35 MPa | ||
| Maximum Operating Pressure | 0.27 MPa | ||
| Temperature Display Resolution | 0.1 ℃ | ||
| Design Temperature | 150 ℃ | ||
| Sterilization Temperature Setting Range | 105–138 ℃ | ||
| Dissolution Temperature Setting Range | 60–100 ℃ | ||
| Unlocking Temperature | 40–99 ℃ | ||
| Sterilization and Melting Time Setting Range | 1–6000 min | ||
| Verification Interface | Temperature Verification Port (G1A) and Pressure Verification Port (G1/2A) | ||
| Exhaust Method | Built-in condenser and water collection tank, fully automatic internal drainage | ||
| Power supply | 110/220 V, 50/60 Hz | ||
| Power (W) | 3200 | ||
| Chamber Size (Dia×H)(mm) | Ø405×506 | Ø405×706 | Ø405×831 |
| External Size (W×D×H)(mm) | 590×695×865 | 590×695×1030 | 590×695×1155 |
| Shipping Size (W×D×H)(mm) | 770×830×1035 | 770×830×1200 | 770×830×1310 |
| N.W/G.W. (kg) | 100/130 | 110/140 | 120/150 |
| Safety Device | Sensor anomaly alarm, heater burnout alarm, mechanical safety valve, electronic pressure protection, pressure lock protection, door safety interlock protection, electromagnetic lock protection, over-temperature and temperature raise protection, earth leakage protection, overcurrent and short-circuit protection, dry heating protection, anti-scalding safety protection, water level sensor monitoring, lid closure check, cooling lock, automatic fault detection system | ||
| Optional | Printer, pressure display, preheat function, automatic water fill, automatic drying, one-touch automatic drain, mobile temperature probe | ||
