- Model : ICB-250CY; ICB-300CY; ICB-400CY; ICB-500CY
- Capacity : 250L / 300L/400L/500L
- Illuminance (Lx) : 0~6000, 6 levels adjustable
- Circulation Mode : Forced convection
- Temperature Range : With lighting: 10~50°C; without lighting: 5~50°C

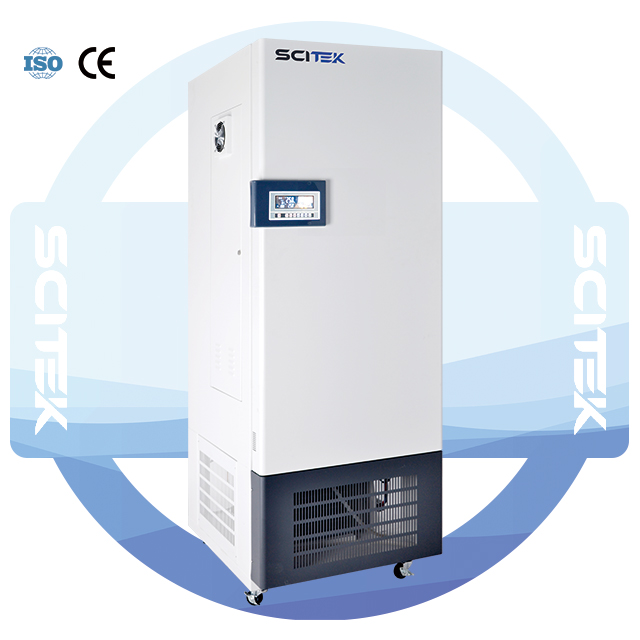

Vertical Artificial Climate Incubator 250L/300L/400L/500L
Advantages:
- The SUS304 stainless steel inner container features a curved design for easy cleaning.
- A fan creates micro-air circulation for improved temperature uniformity.
- A microcomputer-based intelligent P.I.D. temperature controller provides precise temperature control.
- It features parameter memory and automatic resumption of operation upon incoming power.
- Equipped with casters for easy mobility.
- It uses a high-efficiency, low-consumption compressor and a fluorine-free, environmentally friendly refrigerant.
- Equipped with a built-in water tank and automatic water refill port.
- When humidification water is depleted, the humidifier heater automatically disconnects from the power supply.
Climate Chamber Specifications:
| Model | ICB-250CY | ICB-300CY | ICB-400CY | ICB-500CY | |
|---|---|---|---|---|---|
| Capacity(L) | 250 | 300 | 400 | 500 | |
| Circulation Mode | Forced convection | ||||
| Size(WxDxH) | Internal (mm) | 470×449×1178 | 490×464×1278 | 560×600×1198 | 660×650×1198 |
| External (mm) | 672×792×1825 | 691×807×1925 | 764×932×1860 | 864×982×1860 | |
| Temperature | Range | With lighting: 10~50°C; without lighting: 5~50°C | |||
| Fluctuation | ±0.5°C | ||||
| Resolution | 0.1°C | ||||
| Uniformity | ±2°C | ||||
| Sensor | PT100 | ||||
| Humidity | Range | With lighting: 50%~80%RH (18~45°C); without lighting: 50%~90%RH (15~45°C) | |||
| Resolution | 1%RH | ||||
| Illumination(Lx) | 0~6000, 6 levels adjustable | ||||
| Light Source/Lighting Method | LED, 6500K color temperature / 2 sides | ||||
| Timer | 0~99hrs | ||||
| Timer | 1~9999min (Optional 30xsegmentsx100cycles) | ||||
| Material | Internal | SUS304 Stainless steel | |||
| External | Cold rolled steel electrostatic spraying exterior | ||||
| Shelves | 3pcs, per shelf loading is 15kg | ||||
| Internal Socket | Optional | ||||
| Refrigerant | R134a (CFC free) | ||||
| Consumption(W) | 2400 | 2900 | 3400 | 3900 | |
| Working Environment Temperature | 10~30°C | ||||
| Power Supply | AC 110/220V, 50/60Hz | ||||
| G.W.(kg) | 176 | 188 | 218 | 286 | |
| Shipping Size (WxDxH) (mm) | 750×960×1960 | 770×970×2090 | 850×1050×2020 | 1060×1180×2020 | |
| Safety Device | Over temperature alarm, temp probe damage alarm, humidity probe damage alarm | ||||
| Optional | Independent external temperature protection device; temperature SMS alarm module (data traffic card not included) with mobile phone APP query function; RS485 communication serial port; RS485 to USB adapter interface; micro thermal printer or dot matrix printer. | ||||
