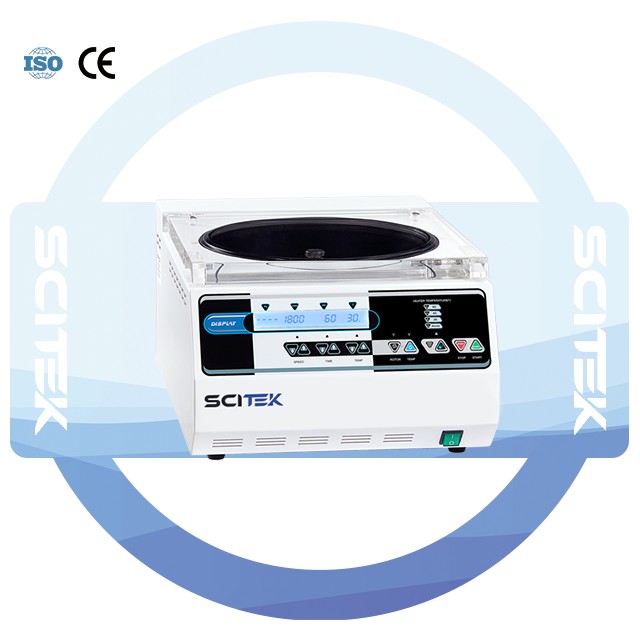

Vacuum Centrifugal Concentrator, VCC-V200

Vacuum Centrifugal Concentrator, VCC-V200

Model: VCC-V200
Speed Range: 300–1800 rpm
Maximum Centrifugal Force: 430 ×g
Temperature Control Range: RT+5℃ to 80 ℃
Standard Rotor: 90×1.5/2 mL

Share the product

Warning: call_user_func_array() expects parameter 1 to be a valid callback, function 'wpb_pcf_contact_form_button' not found or invalid function name in /www/wwwroot/www.scitekuae.com/wp-includes/class-wp-hook.php on line 341

分类： Centrifugal Vacuum Concentrators 标签： Vacuum Centrifugal Concentrator, Vacuum Concentrator

详细资料

Vacuum Centrifugal Concentrator Feature:

Teflon-coated aluminum chamber for corrosion resistance.
One-button start/stop for automatic operation.
Auto vacuum release on power-off protects samples.
12+ optional rotors available.
Adjustable speed 300–1800 rpm to prevent boiling.
24 cm height for easy sample handling.
Quick temperature presets: RT, 30 °C, 45 °C, 60 °C.
Vacuum delayed start after preset speed.
Alarm for insufficient vacuum.
Intake filtration prevents cross-contamination.

Specification of Vacuum Centrifugal Concentrator:

Model	VCC-V200
Speed Range	300–1800 rpm
Maximum Centrifugal Force	430 ×g
Time Range	0–9999 mins
Temperature Control Range	RT + 5 ℃ to 80 ℃
Ultimate Vacuum Value	≤ 30 Pa (≤ 0.3 mbar)
Noise	≤ 60 dB (A)
Standard Rotor	90×1.5/2 mL
Power	1100 W
Power Supply	AC 220/110 V, 50/60 Hz, 10 A
Overall Dimension (W×D×H)	520×360×240 mm
Shipping Size (W×D×H)	630×450×550 mm
N.W/G.W	25.8/31 kg
Optional	Rotor, Cold Trap (CT-M50/CT-M80), Diaphragm Vacuum Pump (DVP-M480)

Specification of Rotor:

Type	Aperture (Number and Capacity of Sample Tube)
Standard	90×1.5/2 mL
Optional	24×5 mL+66×1.5 mL
	54×1.5 mL+48×0.6 mL
	24×8×0.2 mL
	40×10 mL
	20×10 mL(Round bottom)
	8×50 mL+8×10 mL
	8×50 mL(Conical bottom)
	20×15 mL(Conical bottom)
	64×2 mL(Glass vial)
	8×40 mL+8×10 mL
	16×20 mL (Glass vial)
	2×96 Microplate

Cold Trap Specification:

Model	CT-M50	CT-M80
Temperature	-50 ℃	-80 ℃
Cold Trap Capacity	2000 mL	4500 mL
Coil Way	External coil	Internal coil
Cover Material	Polypropylene
Power	900 W	1800 W
Power Supply	AC 110/220 V, 50/60 Hz, 10 A
Size (D×W×H)	500×210×470 mm	600×360×630 mm
Shipping size (D×W×H)	590×300×560 mm	670×430×710 mm
N.W./G.W.	32/39.5 kg	70/82 kg

Diaphragm Vacuum Pump Specification:

Model	DVP-M480
Pumping Speed (L/min)	35 L/min
Ultimate Vacuum (MPa)	≤ 8 mbar
Noise	≤ 50 dB
Power (W)	200 W
Power Supply	AC 110/220 V, 50/60 Hz, 10 A
Size (D×W×H)	266×163×257 mm
Shipping size (D×W×H)	370×330×370 mm
N.W./G.W.	9.2/13 kg
