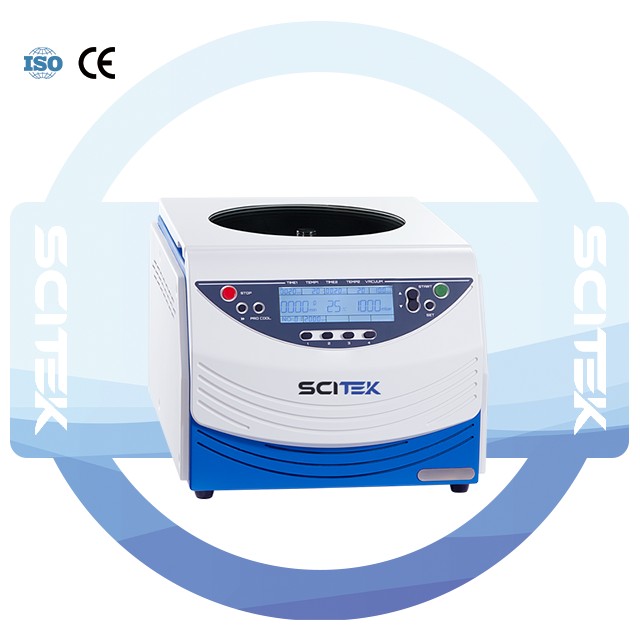

VCC-R1P is refrigerated vacuum centrifugal concentrator which is more suitable for temperature sensitive samples, such as proteomics, genomics, molecular biology research.
Specification of Vacuum Centrifugal Concentrator:
| Model | VCC-R1 | VCC-R1P |
| Speed Range | 800–2000 rpm | |
| Maximum Centrifugal Force | 530 ×g | |
| Time Range | 1–9999 mins | |
| Vacuum Control Range | 0.1–100 mbar | |
| Ultimate Vacuum Value | ≤0.2 mbar | |
| Sample Chamber Pre-cooling Function | NA | Yes |
| Centrifugal Imaging Function | Yes | |
| Temperature Control Range | RT + 5 ℃ to 100 ℃ | -10 ℃ to 100 ℃ |
| Temperature Control Accuracy | ±1 ℃ | |
| Noise | ≤ 55 dB (A) | ≤ 60 dB (A) |
| Power | 1100 W | 1200 W |
| Standard Rotor | 90×1.5/2 mL | |
| Power Supply | AC 220/110 V, 50/60Hz, 10 A | |
| Overall Dimension (W×D×H)(mm) | 481×370×294 | 608×370×348 |
| Shipping Size (W×D×H)(mm) | 625×415×565 | 700×490×550 |
| N.W/G.W (kg) | 28.5/34 | 48.6/59 |
| Optional | Rotor, Cold Trap (CT-M50/CT-M80), Diaphragm Vacuum Pump (DVP-M480) | |
Specification of Rotor:
| Type | VCC-R1 | VCC-R1P |
| Standard | 90×1.5/2 mL | |
| Optional | 72×5 mL (Round bottom) | 20×10 mL (Round bottom) |
| 10×30/40 mL (Penicillin bottle) | 8×40 mL +8×10 mL (Penicillin bottle) | |
| 24×5 mL+66×1.5 mL | ||
| 54×1.5 mL+48×0.6 mL | ||
| 24×8×0.2 mL | ||
| 40×10 mL | ||
| 8×50 mL | ||
| 20×15 mL (Conical Bottom) | ||
| 64×2 mL (Glass Vial) | ||
| 16×20 mL (Penicillin Bottle) | ||
| 6×100 mL (Chicken Heart Bottle) | ||
| 2×96 Microplate | ||
| Model | CT-M50 | CT-M80 |
| Temperature | -50 ℃ | -80 ℃ |
| Cold Trap Capacity | 2000 mL | 4500 mL |
| Coil Way | External coil | Internal coil |
| Cover Material | Polypropylene | |
| Power | 900 W | 1800 W |
| Power Supply | AC 110/220 V, 50/60 Hz, 10 A | |
| Size (D×W×H) | 500×210×470 mm | 600×360×630 mm |
| Shipping size (D×W×H) | 590×300×560 mm | 670×430×710 mm |
| N.W./G.W. | 32/39.5 kg | 70/82 kg |
| Model | DVP-M480 |
| Pumping Speed (L/min) | 35 L/min |
| Ultimate Vacuum (MPa) | ≤ 8 mbar |
| Noise | ≤ 50 dB |
| Power (W) | 200 W |
| Power Supply | AC 110/220 V, 50/60 Hz, 10 A |
| Size (D×W×H) | 266×163×257 mm |
| Shipping size (D×W×H) | 370×330×370 mm |
| N.W./G.W. | 9.2/13 kg |
