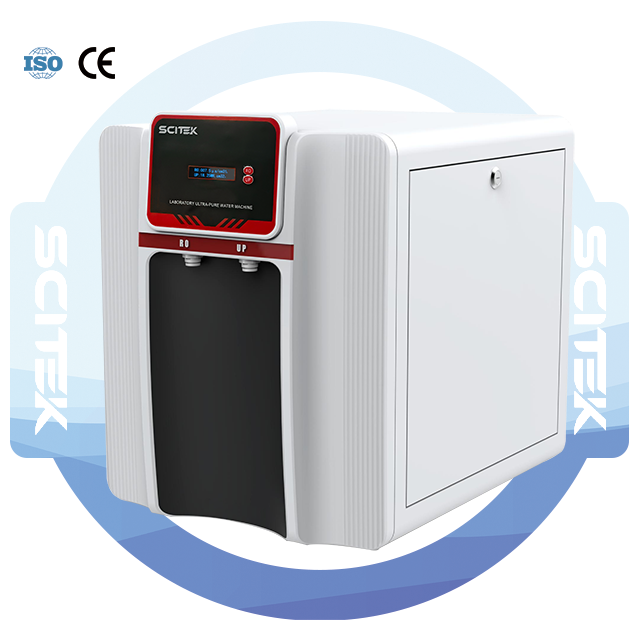

Ultrapure Water Machine

Ultrapure Water Machine Feature:

Features power, pump, low-pressure, and system flush indicators.
Uses imported ion filter membrane and high-pressure silent pump for reliable performance and broad water quality compatibility.
Automatically flushes for 30 seconds before each use.
Includes system protection—automatically stops and alerts on low/no water, and restarts when water supply resumes.

Ultrapure Water Machine Specification:

Model	WP-UB10BS	WP-UB20BS	WP-UB30BS	WP-UB40BS	WP-UB50BS	WP-UB60BS
Water Output (L/H)	10-15L/H	20-25L/h	30-35L/h	40-45L/h	50-55L/h	60-65L/h
Feed water requirements
Water quality	City tap water
TDS	<1000ppm
Water pressure	>0.1Mpa
Water temperature	5-45℃
RO Water quality
Conductivity	<0.2μs/cm
UP water quality
Resistivity	18.25MΩ.cm@25℃
Heavy metal ion	< 0.01 ppb
Total Organic Carbon (TOC)	<30 ppb
Bacteria	<0.1 cfu/ml
Particle (0.2μm)	<1/ml
Endotoxin	<0.001EU/ml
Ion content
Sodium ion (Na⁺)	< 0.1 ppb
Potassium ion (K⁺)	< 0.1 ppb
Calcium ion (Ca²⁺)	< 0.1 ppb
Magnesium ion (Mg²⁺)	< 0.1 ppb
Iron ion (Fe³⁺)	< 0.01 ppb
Chloride ion (Cl–)	< 0.1 ppb
Nitrate ion (NO₃⁻)	< 0.1 ppb
Sulfate ion (SO₄²⁻)	< 0.1 ppb
Phosphate ion (PO₄³⁻)	< 0.01 ppb
Carbonate ion (CO₃²⁻)	< 0.1 ppb
Bromide ion (Br–)	< 0.1 ppb
Water Outlets	RO Pure Water, UP Ultra-pure Water (two)
Pure Water Machine Process	Reverse Osmosis
Storage vessel	Internal 3.2 gallon(12L) pressure tank
Power supply	35W
Power supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz (Optional)
External Size(W×D×H)	410×510×470 mm
Shipping Size(W×D×H)	460×570×665 mm
N.W./G.W. (kg)	18.95/28	19.45/28	20/28	20/28	20.5/28	20.5/28
