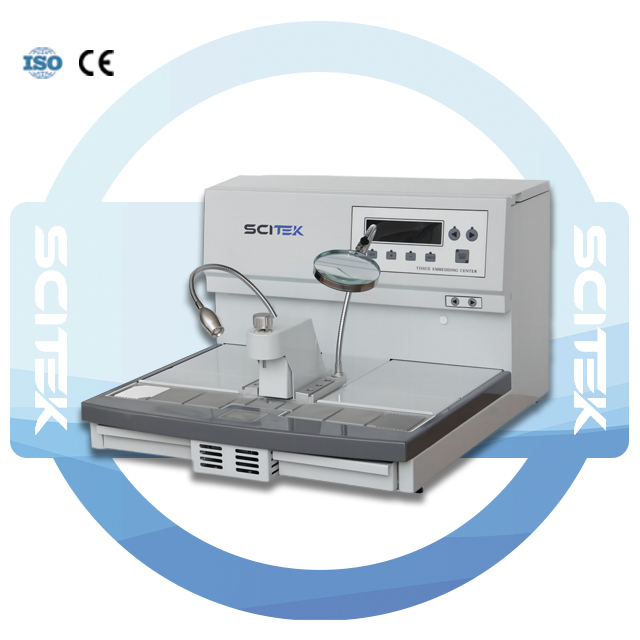

Tissue Embedding Center, TE-IV

This is a large-capacity tissue embedding center, providing sufficient convenience for your histology experiments.

Warning

/www/wwwroot/www.scitekuae.com/wp-includes/class-wp-hook.php

341

Tissue Embedding Center Feature:

High-clarity imported OLED display delivers sharp text visibility from all viewing angles.
Intelligent computerized control supports weekly programmable start-up and shutdown scheduling.
High-precision U.S.-made temperature sensing module with seven independently regulated PID zones ensures stable, accurate heating.
Dual over-temperature protection enhances operational safety and system reliability.
Temperature settings are automatically stored and restored through memory and auto-reset functions.
Supports both manual operation for instant control and automatic mode with power-loss memory and restart capability.
Enlarged processing chambers, expanded forceps platform, and a wide work surface improve workflow efficiency and comfort.
Adjustable magnifier with universal metal hose enables precise handling of ultra-small specimens.
Integrated semiconductor rapid-cooling cold plate allows fast specimen positioning and accelerates embedding efficiency.
Extra-capacity paraffin reservoirs support high-volume tissue embedding.
Low-voltage cold light illumination with imported CPU provides stable, flicker-free lighting and stepless brightness adjustment; flexible hose design allows precise light positioning.
Dual paraffin dispensing control via soft-touch button or foot switch for convenient, hands-free operation.

Tissue Embedding Center Speciﬁcation:

Model		TE-IV
Paraffin Chamber Capacity		6 L
Temperature Range	Forceps Holder	RT – 85 ℃
	Paraffin Chamber
	Left Thermal Chamber
	Right Thermal Chamber
	Working Table
	Paraffin Distributor
	Small Cooling Plate	＜-5 ℃
Temperature Control Precision		±1 ℃
Paraffin Flow Control		Automatic soft-touch switch, foot switch
Fully Programmable ON/OFF Control		Allows automatic system start and stop anytime weekly
Safety protection		Double overheat protection device
Automatic memory recovery function		Yes
Working area sizes	Thermal Chamber	240×160×55 mm
	Working Table	540×93 mm
	Small Cooling Plate	60×50 mm
Power Supply		AC 220 V±10% 50 Hz (standard model); AC 110 V±10% 60 Hz
Power		1000 W
Machine Sizes (W×D×H)		680×580×400 mm
Shipping Size (W×D×H)		780×700×500 mm
N.W. /G.W.		38/60 kg
