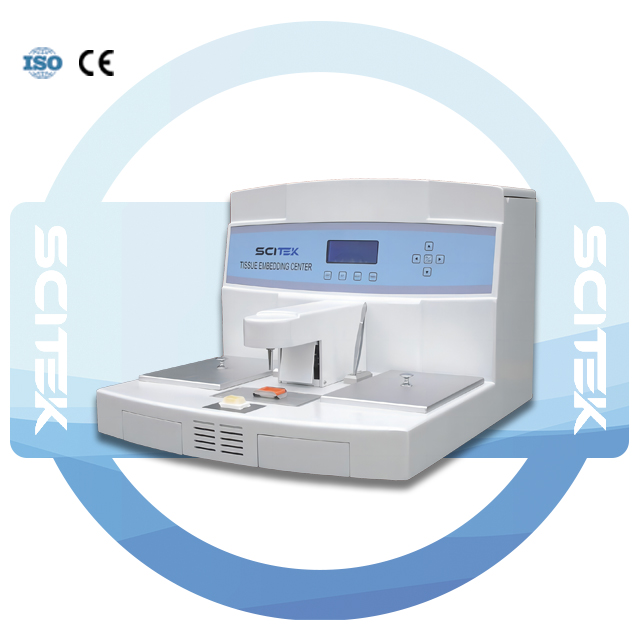

Tissue Embedding Center, TE-III

This tissue embedding center is equipped with a small cooling plate, which can temporarily store the tissue.

Advantage:

Automatic controlling procedure, time of power on/off can be reset in any time of each day weekly.
Adopted with new-type silastic heating element, heated quikly and evenly, energy-saving.
American DALLAS temperature-measuring chip, high precision, stable performance, display as icon in the state of working.
Paraffin beaker, paraffin distributor, thermal chamber, working table can be separately controlled and work independently. Five different modes of controlling temperature and multi-ply over-heating protection, safe, reliable, and energy-saving.
Automatic memorization, and self-recovery, reserving resetting temperature when starting up.
Embedded tissue can be freezed at Small Cooling Plate with the instrument.
High capacity (5 liters) paraffin chamber can finish tissue-embedding one time.
Low-voltage lighting system, safe and reliable.
2 modes of switch: manual control and foot switch.
Workstation, forceps holder can be heated, easy for embedding.
High-precision time indication, easy to reset.

Speciﬁcation:

Model		TE-III
Paraffin Chamber Capacity		5 L
Temperature Range	Forceps Holder	RT – 99 ℃
	Paraffin Chamber
	Left Thermal Chamber
	Right Thermal Chamber
	Working Table
	Paraffin Distributor
	Small Cooling Plate	＜-5 ℃
Temperature Control Precision		±1 ℃
Paraffin Flow Control		Automatic soft-touch switch, foot switch
Fully Programmable ON/OFF Control		Allows automatic system start and stop anytime weekly
Safety Protection		Double overheat protection device
Automatic Memory Recovery Function		Yes
Working Area Sizes	Thermal Chamber	240×160×55 mm
	Working Table	150×90 mm
	Small Cooling Plate	60×50 mm
Power Supply		AC 220 V±10% 50 Hz (standard model); AC 110 V±10% 60 Hz
Power		800 W
Dimensions Sizes (W×D×H)		650×580×450 mm
Shipping Size (W×D×H)		770×690×610 mm
N.W. /G.W.		40/45 kg
