- Model : BTT-I; BTT-II; TTH-III; TTH-IV
- Test Range : 0～5mm; 0～30mm
- Test Accuracy : ±0.01mm
- Type of Capsule : 00,0,1,2,3,4 type capsule
Thickness Tester
Warning: call_user_func_array() expects parameter 1 to be a valid callback, function 'wpb_pcf_contact_form_button' not found or invalid function name in /www/wwwroot/www.scitekuae.com/wp-includes/class-wp-hook.php on line 341
Thickness Tester Feature:

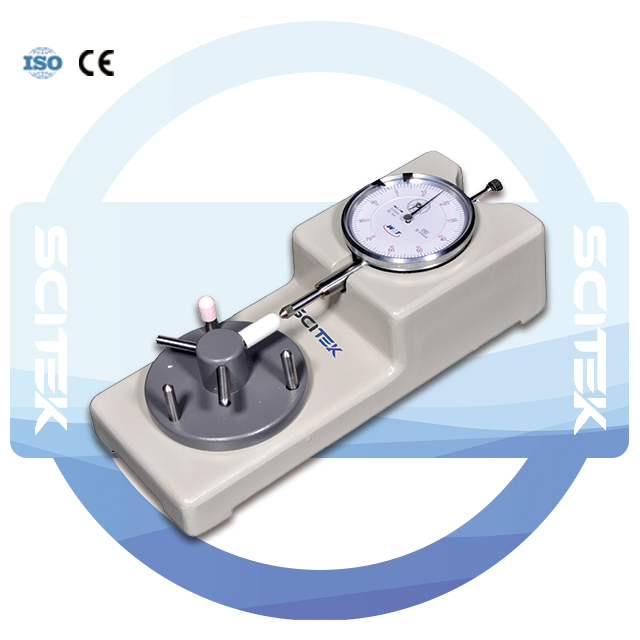

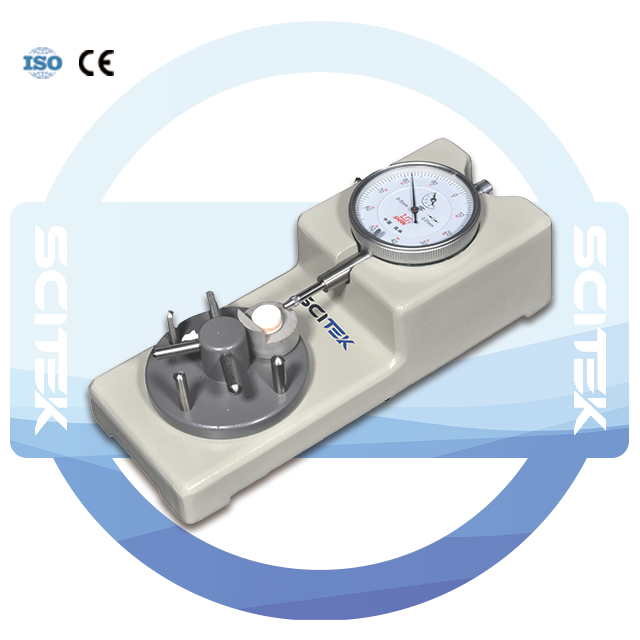

BTT-I, BTT-II are benchtop thickness testers suitable for measuring peak and wall thickness of capsules. The BTT-II is a benchtop thickness tester for measuring the peak and wall thickness of capsules and is equipped with the most precise, high-quality Celsius meter for high-precision measurements.

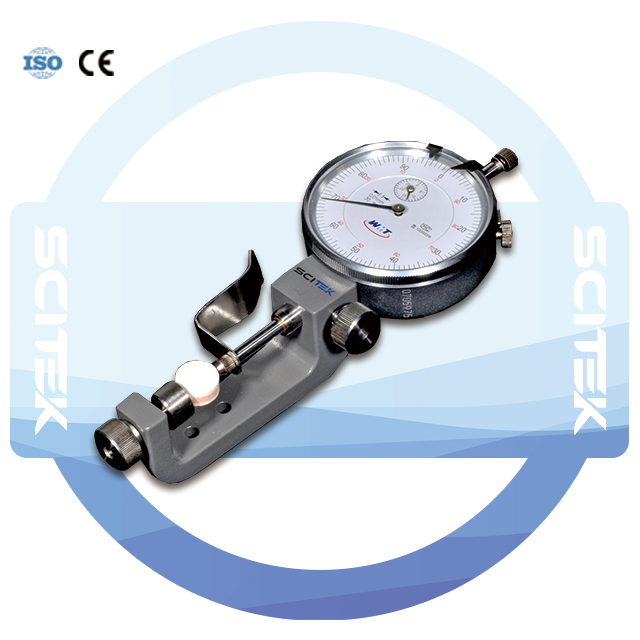

TTH-III and TTH-IV are two handheld thickness testers which are small and portable. It uses the most precise, high-quality in-house Celsius meter for high-precision testing.
Thickness Tester Specification:
| Model | BTT-I | BTT-II | TTH-III | TTH-IV |
|---|---|---|---|---|
| Test Range | 0~5mm | 0~30mm | 0~5mm | 0~30mm |
| Test Accuracy | ±0.01mm | |||
| Type of Capsule | 00,0,1,2,3,4 type capsule | |||
| Size(W×D×H)(mm) | 200×80×50 | 200×80×50 | 160×60×50 | 160×60×50 |
| Shipping Size(W×D×H)(mm) | 280×160×160 | |||
| N.W./G.W. (kg) | 1/2 | |||
