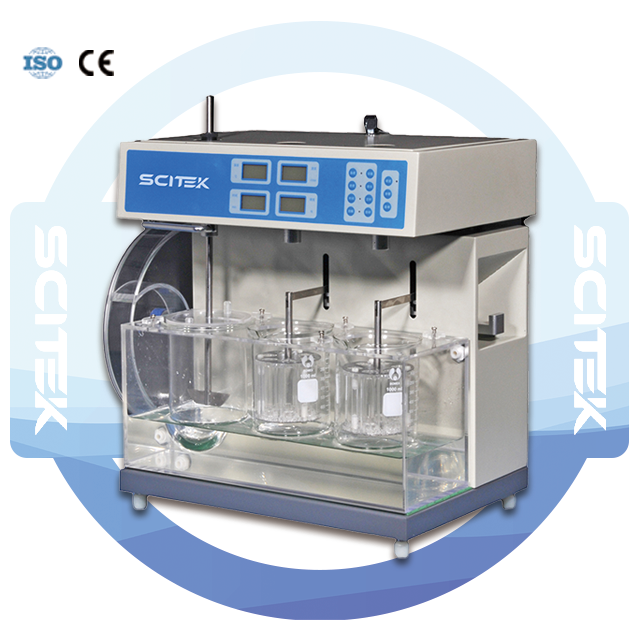

Tablet Four-usage Tester

  • Model : TFT-4
  • Dissolving Quantity : 3pcs
  • Temperature Control Range : (20~40)±0.3℃
  • Speed Adjustable Range : (20~200)±2 rpm
  • Timing Range : (1~600)±0.5min
  • Swing of Paddle Rod : ±0.5mm

Share the product

Tablet Four-usage Tester Feature:

The tablet four-usage tester is equipped with a high-precision pressure transducer to accurately perform a full range of tests for friability, tablet hardness, disintegration time, and dissolution. It is a versatile, fully automated and ideal equipment for pharmaceutical testing. In addition, the machine’s paddles and other key components are made of high-quality SS316L stainless steel. The Tablet Four-usage Tester automatically displays test results without manual operation. This helps to obtain test data quickly, reducing testing time and labor costs.

  • Intelligent operation, with automatic detection, diagnosis of faults, and automatic alarms to ensure safer use.
  • Adoption of magnetic pump circulating water system to ensure uniform heating and constant temperature of water bath
  • A high-precision temperature control system can automatically regulate the temperature to ensure the accuracy of the test.
  • Can set timer shutdown time and test lock function to lock the test results on the screen for recording and analyses
  • Real-time display of the actual value and preset value, intuitive display of data to facilitate users to compare data
  • Three cups and three rods in a single-word, single-row design, the head of the manual flip is smooth and flexible.
  • Automatic display, lock, reset, and cycle test function.

Tablet Four-usage Tester Specification:

Model TFT-4
Dissolving Quantity 3pcs
Temperature Control Range (20~40)±0.3℃
Speed Adjustable Range (20~200)±2rpm
Timing Range (1~600)±0.5min
Swing of Paddle Rod ±0.5mm
Swing of Rotation Basket ±1.0mm
Number of Baskets 2
Reciprocation Frequency (30~32)times/min
Reciprocation Stroke (55±2)mm
Number of Cylinders 1
Cylinder Size Inner Diameter 286mm, depth39mm
Sliding Height 156mm
Cylinder Speed 25±1times/min
Number of Cylinder Turns 100±1 turns
Hardness Range 2~199N±1N
Diameter Range 3~40mm
Power Supply AC220V, 50/60Hz
Size(W×D×H)(mm) 570x520x470
Shipping Size(W×D×H)(mm) 730x460x700
G.W. (kg) 50
