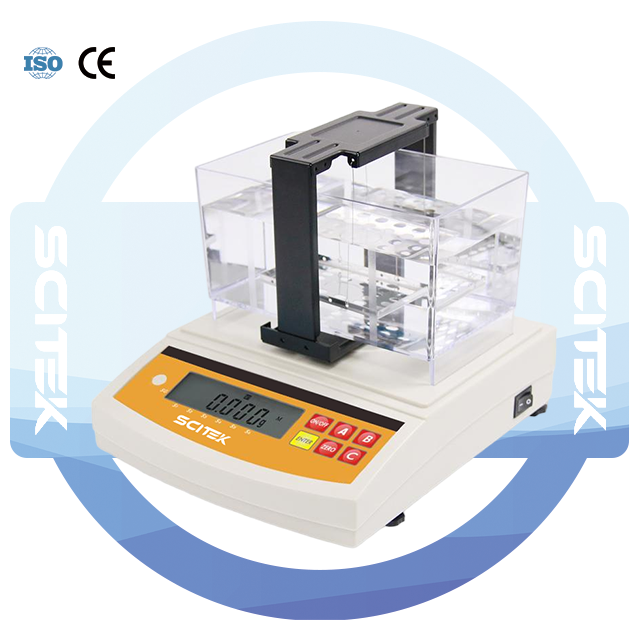

Solid Densimeter

The solid-liquid densimeter applies to materials such as rubber, plastic, cables, glass, powders, ceramics, fireproofing materials, magnetic materials, mechanical parts, minerals and rocks, etc.

Model : DME-120S; DME-300S; DME-600S
Capacity : 120 g; 300 g; 600 g
Minimum Weight : 0.001 g; 0.005 g; 0.005 g
Density Resolution : 0.0001 g/cm³; 0.001 g/cm³; 0.001 g/cm³
Density Range : 0.0001–99.9999 g/cm³; 0.001–99.999 g/cm³; 0.001–99.999 g/cm³

Share the product

Application:

It can be applied for materials of rubber, plastic, cables, glass, powder, ceramics, fireproofing materials, magnetic materials, mechanical parts, mineral and rock, cement, metal and precious metal, jewellery and in new materials researching laboratory.

Advantage:

Fasting testing speed, high efficiency, can be applied in production site and laboratory.
Easy to operate, when the medium is water, the density value can be displayed after two steps; and it is more convenient that there is no need calculation by hand compared with traditional densimeters.
With functions of automatic zero tracking, buzzer warning, and overload warning.
With solution compensation function, which is necessary if to use liquid otherthan water as a medium for measurement.
Equipped with completed high-capacity measurement accessories, and the transparent injection moulding sink is resistant to wear, falling off and corrosion.
With completed injection moulding testing plat, and the high transparency PC water sink, users can inspect the samples in water clearly. The suspension wire made of 0.5 mm stainless steel is perpendicular to nacelle, which would not touch the water sink, can ensure the accuracy of the test result.
Adopts completed professional windproof and dustproof cover, which makes the machine convenient and durable.
Plastic particle, film, floating, seal ring, rubber, calcium carbonate powder can get quick tested.
With RS-232C interface (standard); Printer is optional.

Specification:

Model	DME-120S	DME-300S		DME-600S
Capacity	120 g	300 g		600 g
Display	LCD	LCD		LCD
Density Resolution	0.0001 g/cm³	0.001 g/cm³		0.001 g/cm³
Measuring Range	0.0001–99.9999 g/cm³	0.001Size–99.999 g/cm³		0.001–99.999 g/cm³
Maximum Weight	120 g	300 g		600 g
Minimum Weight	0.001 g	0.005 g		0.005 g
Output Interface	RS-232C interface	/		/
Standard Accessories	Sink, test board, tweezer, thermometer,100 g weight, windproofand dustproof cover,1 set of measuring grain accessories,1 set of measuring floating body accessories, power transformer
Optional Accessories	Printer	/		/
Power Supply	220/110 V, 50/60 Hz
External Size (W×D×H)	195×230×197 mm
Shipping Size (W×D×H)	440×180×345 mm
N.W./G.W.	1.6/4.5 kg	1.8/4.5 kg	1.8/4.5 kg
