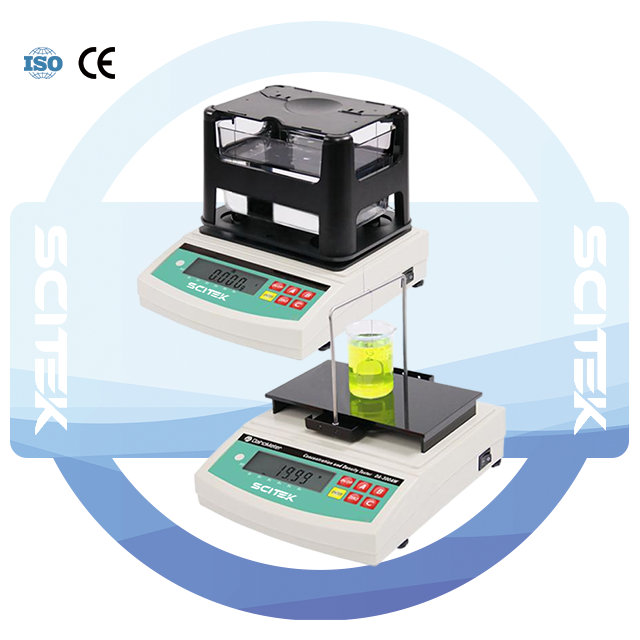

Solid and Liquid Densimeter is ideal for quality management, cost control, and material research, with fast and accurate density measurements for solids, plastics, powders, and liquids.
Application:
It is suitable for the field of quality management, cost control, new formula researching and material studying and so on, can be applied to measure the density of general solid material and plastic particle, powder and liquid.
Advantage:
Specification:
| Model | DME-300SL | DME-600SL | ||
| Capacity | 300 g | 600 g | ||
| Density Resolution | 0.001 g/cm3 | 0.001 g/cm3 | ||
| Weight Range | 0.005–300 g | 0.005–600 g | ||
| Density Range | 0.001–99.999 g/cm3 | 0.001–99.999 g/cm3 | ||
| Solid Mode | Measuring Solid Type | Density of any form solid: metal, rubber, plastic and particle, film, | ||
| Floating body, powder, foaming, heavy body, structure, tubing, | ||||
| Panel, wood, sponge, glass. | ||||
| Measuring Principle | Archimedes principle general solid test method | |||
| Measuring Time | About 5 seconds | |||
| Memory Way | Two procedures | |||
| Specific Gravity Measuring Frame | Unicase injection forming professional specific gravity mesaturement frame Size (L×W×H): 13.5×5×11.6 mm | |||
| Measuring Tank | Unicase injection forming transparent professional measuring tank, Size (L×W×H): 16.9 ×9.8× 8.3 mm | |||
| Result Display | Display according to the model:density, specific gravity, apparent density, volume density, wet density, total porosity, effective porosity, oil content, water absorption, wear loss, wear index, expansibility,volume and so on. | |||
| Function Setting | Water temperature setting,density setting of medium of comparativesolution,density setting of medium of waterproofing treatment ,boung setting,aerostatic buoyancy setting,Loss value setting of fixed weight of reference glue,loss value setting of weight of reference glue,density setting of reference glue. |
|||
| Mixed Material Percentage | Function Introduction | Automatically read the percentage of the main material in the two kinds of mixed materials. | ||
| Setting | Freely set the density value of main material and subordinate material. | |||
| Display | Density value,percentage of main material | |||
| Liquid Mode | Measuring Type | a: Mobility liquid,vicious liquid,volatile liquid, corrosivity liquid, high temperature liquid, suspension liquid,emulsion and so on. | ||
| b: Alcohol, scaling, powder, essence, blood, sodium, chloride, glycerol, electrolyte, diesel, refrigerating, hydrofluoric, acid,dichloromethane, vitriol. | ||||
| Measuring Principle | Archimedes principle displacement method | |||
| Measuring Mode | 1 group | |||
| Measuring Time | About 5 seconds | |||
| Memory Mode | Memory in shorter time by one procedure | |||
| Result Display | Density | |||
| Specific Gravity Measuring Frame | Stainless steel specific gravity measuring frame | |||
| Function Setting | Temperature setting,density setting, measuring weights setting of standard sensor ball and weights setting in the water. | |||
| Measuring Testing | Distilled testing | |||
| Calibration | Auto correction with one button,auto detection. | |||
| Output Interface | RS-232 interface, can print testing data conveniently | |||
| Standard Accessories | Tank,testing board, tweezer,thermometer, 100 g weight ,wind and dust cover,a set of measuring floating body parts, power transformer, standard liquid measuring assembly. | |||
| Optional Accessories | Printer, anti-corrosive liquid measuring assembly | |||
| Power Supply | 220/110 V, 50/60 Hz | |||
| External Size (W×D×H) | 195×230×197 mm | |||
| Shipping Size (W×D×H) | 440×180×345 mm | |||
| N.W./G.W. | 1.8 /4.5 kg | |||
