Advantage:

Number of sections: Section and trimming counts are clearly displayed.
The memory position: Multiple memory positions of specimen holder.
Quick Positioning: One click to return to the user-defined position.
Voice prompt: Alarms when specimen holder travels approach displacement limit, helping identify travel distance.
OLED display screen: Clear to see and easy to operate.
Segmented positioning of blade holder: Three section quick positioning to maximize the utilization of blade.
Blade holder’s angle adjustment: The angle can be adjusted from 0 to 10 degrees, and the front and back position of the blade holder can be adjusted.
High and low profile blade holder: Optional high and low profile blade holder.
Double Locking System: Upper lock enables quick operation; lower lock secures the handwheel at any position.

Speciﬁcation:

Model	MT-S5500
Section Thickness Range	0.25-100 μm
Section Thickness Setting	0.25-2.5 μm, in 0.25 μm increments
	2.5-5 μm, in 0.5 μm increments
	5-10 μm, in 1 μm increments
	10-30 μm, in 2 μm increments
	30-60 μm, in 5 μm increments
	60-100 μm, in 10 μm increments
Trimming Thickness Range	1-600 μm
Trimming Thickness Setting	1-10 μm, in 1 μm increments
	10-20 μm, in 2 μm increments
	20-50 μm, in 5 μm increments
	50-150 μm, in 10 μm increments
	150-600 μm, in 50 μm increments
Max.Specimen Size	80×65 mm
Precision Error	±1%
Retraction Range	0-100 μm(0 means no retraction fuction)
Retraction Range	0-5-10-15-100 adjustable
Total Horizontal Specimen Feed	30 mm
Vertical Specimen Stroke	70 mm
Feeding Speed	2000 μm/s
Number of Section and Trimming	0-9999
Memory Points	2 position can be set
Movement Range of Blade Holder’s Base	0-65 mm (front-to-back)
Movement Range of Blade Holder	0-26 mm (left-to-right)
Specimen Orientation	X/Y axis 8°, Rotation 360°(optional)
Power Supply	AC 110 V – 120 V AC 220 V – 240 V
Power Draw	100 VA
External Size (W×D×H)	595×465×295 mm
Shipping Size (W×D×H)	690×490×640 mm
N.W. /G.W.	28/50 kg

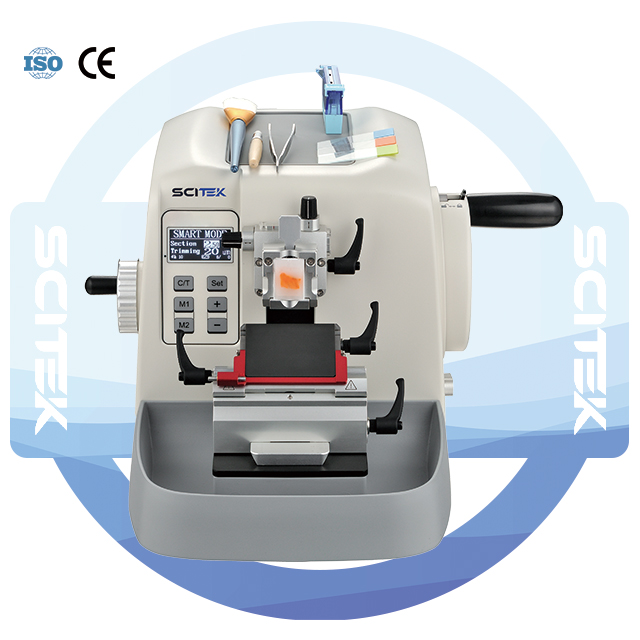

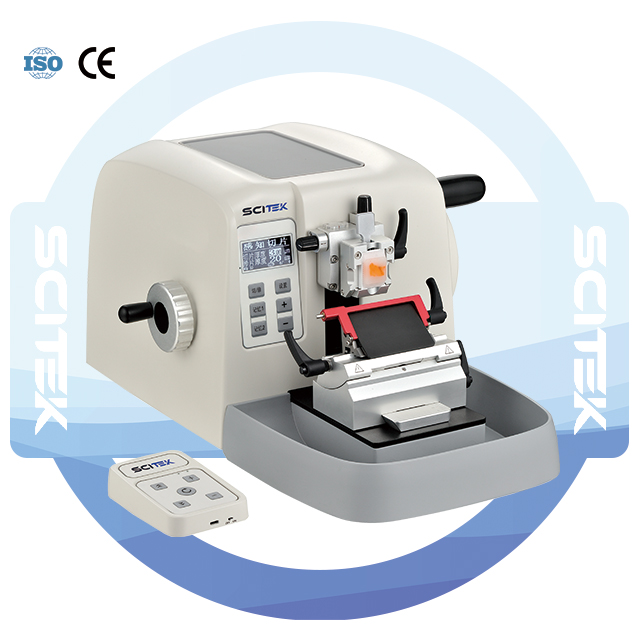

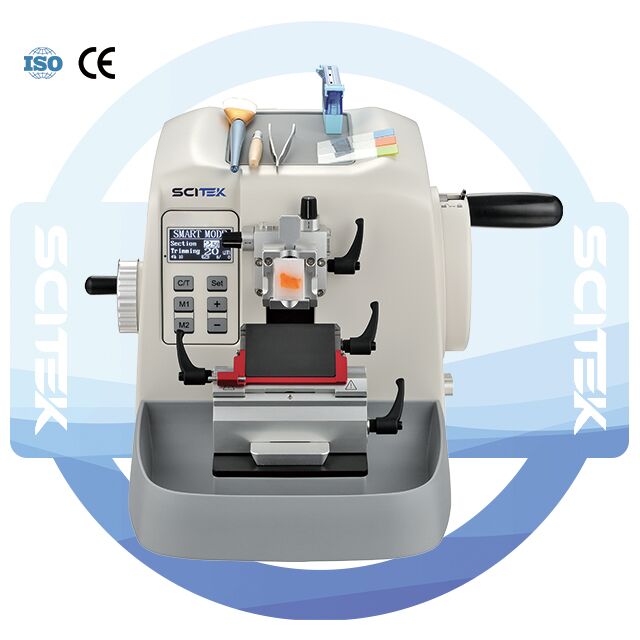

Semi Automatic Microtome, MT-S5500
