This semi automatic microtome slices with precision.
- Model : MT-S3390
- Section Thickness Range: 0.25-100 μm
- Maximum Specimen Size: 70×70 mm
- Specimen Feed: 30 mm

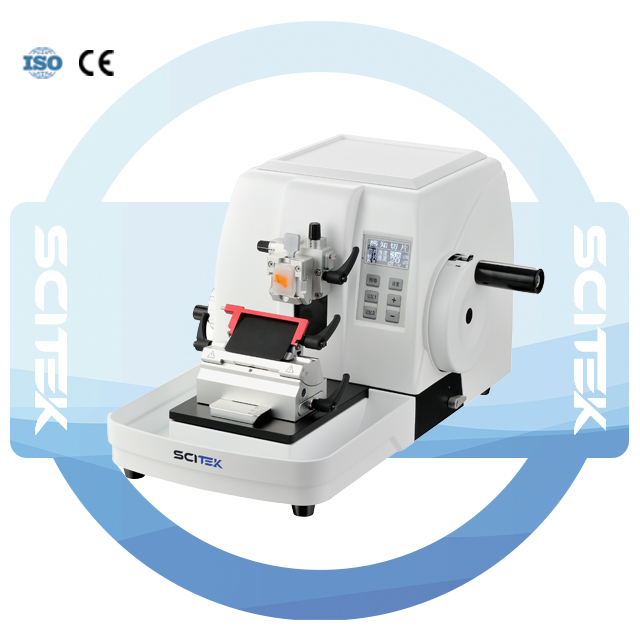

Semi Automatic Microtome, MT-S3390
Advantage:
- Adopted with Hamanization Design, easy interchange of section and trimming mode.
- Drive Feed system made by intelligent procedure, mode of Normal section, Interaction Section and Whole slice section,
- Imported Driving system. Fuction of Interaction section and trimming. Interchange of fast forward and backward. With fuction of retraction,precise section mode.
- Adopted with int’l guide screw system.
- OLED Module Display Screen make working state easy and clear to read.
- Safe warning system,Drive Overload Protection and Self Dormancy system.
- Use with Unversal Cassette Clamp or Wax Block Clamp.
- Handwheel locked in any postion.
- Advanced Guide Rails to ensure precision of tissue section.
- Blade Holder base moved to right or left side easily.no need to move disposable blade.
- Disposable Blade Holder assembled with red safty guard and easy-to-operate blade push rod.
- Big capacity of Waste Tray,easy to disassemble.
Specification:
| Model | MT-S3390 |
| Section Thickness Range | 0.25-100 μm |
| Section Thickness Setting | 0.25-2.5 μm, in 0.25 μm increments |
| 2.5-5 μm, in 0.5 μm increments | |
| 5.0-10 μm, in 1 μm increments | |
| 10-30 μm, in 2 μm increments | |
| 30-60 μm, in 5 μm increments | |
| 60-100 μm, in 10 μm increments | |
| Trimming Thickness Range | 1-600 μm |
| Trimming Section Range | 1-10 μm, in 1 μm increments |
| 10-20 μm, in 2 μm increments | |
| 20-50 μm, in 5 μm increments | |
| 50-150 μm, in 10 μm increments | |
| 150-600 μm, in 50 μm increments | |
| Maximum Specimen Size | 70×70 mm |
| Precision Error | ±1％ |
| Rectraction Range | 0-50 μm (0 means no retraction fuction) |
| 0-5-10-15-50 μm adjustable | |
| Whole Slice Section Range | 10-6000 μm |
| 10-12-15-20-25-5000-6000 μm | |
| Total Horizontal Specimen Feed | 30 mm |
| Vertical Specimen Stroke | 72 mm |
| Moving Range of Holder Base: | 65 mm (front-to-Back) |
| Moving Range of Blade Pressplate | 20 mm (right-to-left) |
| Specimen Holder Revolved at | An angle of 360° |
| Specimen Orientation System | X/Y axis 8° |
| Feeding Speed | 1500 μm/s-3500 μm/s |
| Power Supply | AC 220/110 V, 50/60 Hz |
| Power Draw | 100 VA |
| External Size (W×D×H) | 430×570×330 mm |
| Shipping Size (W×D×H) | 550×670×480 mm |
| N.W. /G.W. | 36/45 kg |
