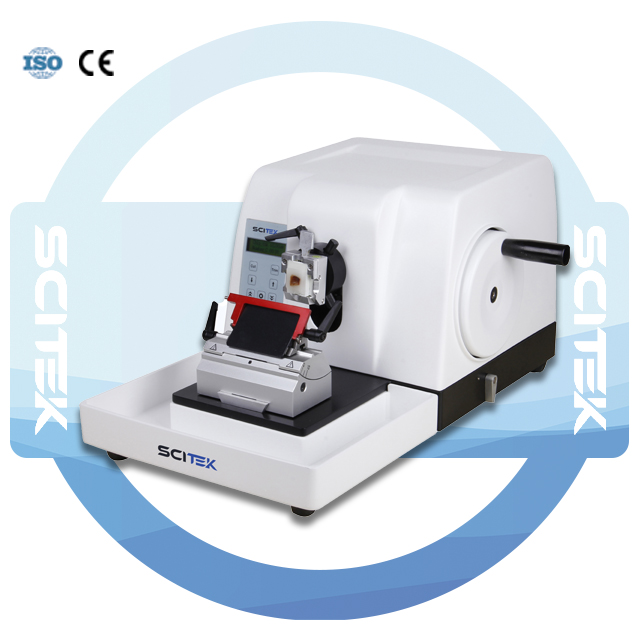

Semi Automatic Microtome, MT-S3360

This semi automatic microtome is equipped with precision blades and a control system to ensure that thin, uniformly sliced samples are obtained.

Advantage:

Advanced drive system with trimming, sectioning, fast forward, fast reverse, and mode switching functions.
LCD screen shows section and trimming thickness, number of sections and trims.
With a safety alarm, drive-overload protection and automatic standby system.
Fast clamp release system between specimen clamp and cassette clamp.
The blade holder can move laterally to avoid direct contact, allowing full blade utilization.
The red bar on the blade holder covers the blade for protection,and the push rod allows easy blade replacement.
Hand-wheel can be locked at any position to ensure the safety and convenience of operation.

Specification:

Model	MT-S3360
Section Thickness Range	0-60 μm
Section Thickness Setting	0~1 μm, in 0.25 μm increments
	1~10 μm, in 1 μm increments
	10~20 μm, in 2 μm increments
	20~60 μm, in 5 μm increments
Trimming Thickness Range	1-900 μm
Trimming Thickness Setting	1~10 μm, in 1 μm increments
	10~20 μm, in 2 μm increments
	20~100 μm, in 5 μm increments
	100~900 μm, in 50 μm increments
Maximum Specimen Size	50×70 mm
Precision Error	±5%
Total Horizontal Specimen Feed	28 mm
Vertical Specimen Stroke	52 mm
Movement Range of Blade Holder’s Base	60 mm (front-to-back)
Movement Range of Blade Holder	23 mm (left-to-righ)
Speed of Fast Forward / Backward	450 μm/s
Specimen Orientation	X/Y axis 8°, 360°Rotation
Automatic Clamp Return Function	Yes
Power Supply	AC 220/110 V, 50/60 Hz
Power Draw	100 VA
External Size (W×D×H)	585×410×305 mm
Shipping Size (W×D×H)	550×670×480 mm
N.W. /G.W.	29/45 kg
