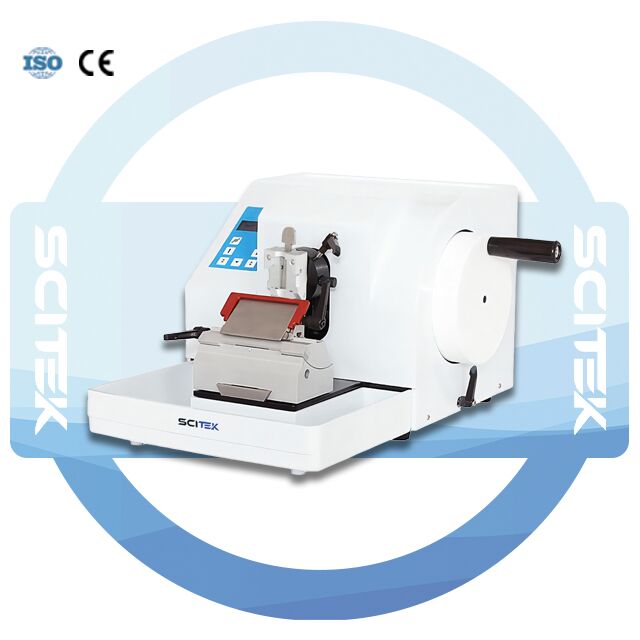

Semi Automatic Microtome, MT-S3315

This semi-automatic microtome machine is suitable for scientific research, medical diagnostics and teaching by combining the advantages of automated functions and manual operation.

  • Model : MT-S3315
  • Section Thickness Range: 0–100 μm
  • Maximum Specimen Size: 45×50 mm
  • Specimen Feed: 25 mm

Share the product

分类: 标签:

Advantage:

  • Adopting internationally advanced stepper motor drive, high sectioning accuracy, smooth and quiet operation.
  • LCD screen with English menu display, buttons to adjust section and trimming thickness, automatic section counting, position memory, fast forward, fast rewind, and fine adjustment of the clamping head position.
  • The specimen retraction function avoids damage caused by reverse contact between the specimen tissue and the blade,  ensuring smoother blade operation and extending the service life of the blade.
  • With automatic identification of half-trimming function, turning the handwheel half a circle counterclockwise can achieve automatic trimming, making sectioning more efficient.
  • A variety of trimming methods, in addition to half-trimming, you can also press the fine-tuning button while turning the handwheel to achieve trimming, which is faster.
  • Two-in-one knife holder, which can easily switch between wide and narrow blades.
  • The handwheel can be locked at any position, making section safer and more convenient.
  • A large capacity waste tray that is easy to disassemble, ensuring clean and hygienic section work.
  • With automatic reset function, the device will automatically return to the starting position after starting or running to the limit position.

Specification:

Model MT-S3315
Section Thickness Range 0-100 μm (3-5 μm is the best section effect)
Section Thickness Setting 0-5 μm, in 0.5 μm increments
5-10 μm, in 1 μm increments
10-20 μm, in 2 μm increments
20-60 μm, in 5 μm increments
60-100 μm, in 10 μm increments
Trimming Thickness Range 0-600 μm
Trimming Thickness Setting 0-10 μm, in 1 μm increments
10-20 μm, in 2 μm increments
20-50 μm, in 5 μm increments
50-100 μm, in 10 μm increments
100-600 μm, in 50 μm increments
Maximum Specimen Size 45×50
Precision Error ± 5%
Specimen Retraction 0-250 μm
Total Horizontal Specimen Feed 25 mm
Vertical Specimen Stroke 55 mm
Power Supply AC 220/110 V, 50/60 Hz
External Size (W×D×H) 490×440×276 mm
Shipping Size (W×D×H) 530×520×450 mm
N.W. /G.W. 26/43 kg
