- Model : SC-WB1000
- Sealing Temperature : RT.+5℃~99℃
- Temperature Accuracy : ≤±1°C
- Samples Position : 12 positions
- Max Vertical Travel : 200mm
- Size(W×D×H)(mm) : 390×300×850

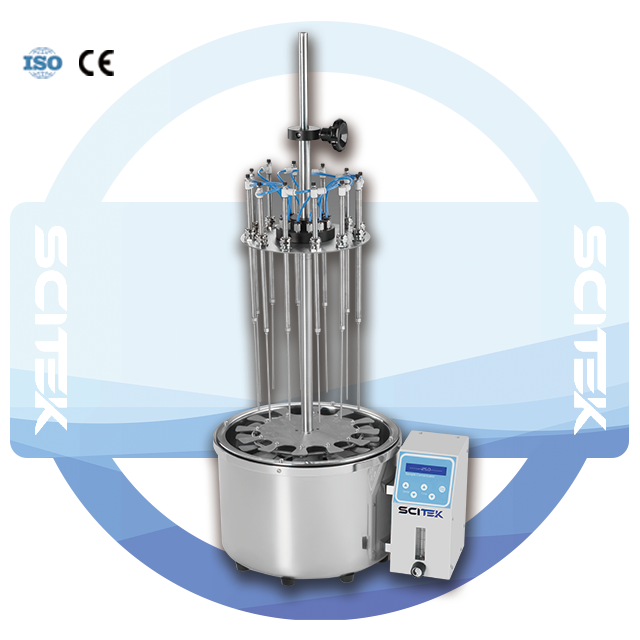

Sample Concentrator, Water Bath Type
Warning: call_user_func_array() expects parameter 1 to be a valid callback, function 'wpb_pcf_contact_form_button' not found or invalid function name in /www/wwwroot/www.scitekuae.com/wp-includes/class-wp-hook.php on line 341
Sample Concentrator Feature:
- High-definition LCD for clear parameter display and easy operation.
- Gentle heating system protects sample integrity.
- 12 positions for high-throughput processing.
- Independent gas channels prevent cross-contamination.
- Liquid level sensor and dry-burn alarm for enhanced safety.
- Liftable needle valves for individual airflow control.
Sample Concentrator Specification:
| Model | SC-WB1000 |
|---|---|
| Temp. Range | RT.+5℃~99℃ |
| Time. Range | 1min~99h59min |
| Display Accuracy | ±0.1℃ |
| Temp. Accuracy | ≤±1℃ |
| Temp. Uniformity (At 60℃) | ≤±1℃ |
| Heating Time (40℃-99℃) | ≤30min |
| Samples Position | 12 positions |
| Tube Size | φ10~φ29 (Liquid volume 1ml~50ml) |
| Max Vertical Travel | 200mm |
| Max Gas Pressure | 200Kpa |
| Max. Gas Usage | 15L/min |
| Gas Joint Diameter | φ8mm |
| Consumption | 1000W |
| Power Supply | AC220V, 50/60Hz |
| Size(W×D×H)(mm) | 390×300×850 |
| Shipping Size(W×D×H)(mm) | Main Machine: 500x470x340 Accessory: 830x340x360 |
| N.W./G.W. (kg) | Main Machine: 4.8/7 Accessory: 5.2/8 |
The SC-WB1000 is constructed with corrosion-resistant, durable, and easy-to-clean materials, including the sample rack, support frame, base, and gas distribution system. Samples are placed on the rack and support tray, while gas flow is regulated through a flow meter to ensure precise and stable delivery. The gas is then directed via flexible tubing to individual valve assemblies, where tube height can be adjusted according to vessel size and solvent volume. A needle directs controlled gas flow onto the liquid surface, accelerating solvent evaporation efficiently and uniformly.
