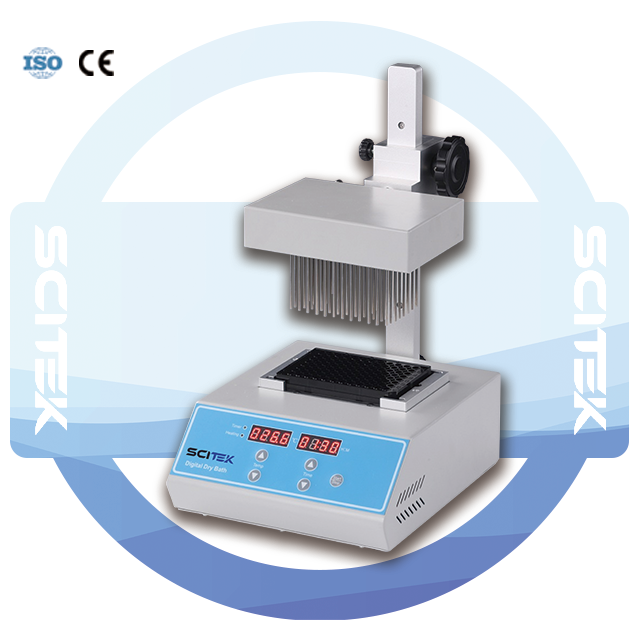

Sample Concentrator, 96 Holes

Sample Concentrator, 96 Holes

Sample concentrator provides maximum throughput, processing up to 96 samples at a time.

Model : SC-3001
Temp Accuracy : ±0.5°C (At 40°C); ±1°C (At 120°C)
Temp Uniformity : ≤±0.5℃
Display Accuracy : 0.1℃
Max Vertical Travel : 150 mm
Size(W×D×H)(mm) : 310×220×385

Share the product

Warning: call_user_func_array() expects parameter 1 to be a valid callback, function 'wpb_pcf_contact_form_button' not found or invalid function name in /www/wwwroot/www.scitekuae.com/wp-includes/class-wp-hook.php on line 341

分类： Sample Concentrator 标签： Concentrator, Sample Concentrator

详细资料

Sample Concentrator Feature:

Uniform heating enhances repeatability and accuracy.
Simultaneous multi-sample processing with independent gas flow.
150 mm needle length fits various container sizes.
Supports one heating block for stable temperature control.

Sample Concentrator Specification:

Model	SC-3001
Temp. Control Range	RT+5°C ~160°C
Temp. Accuracy	±0.5°C (At 40°C); ±1°C (At 120°C)
Temp. Uniformity	≤±0.5°C
Display Accuracy	0.1°C
Time Range	1-99h59min
Heating Time	≤15min (25°C to 160°C)
Max. Vertical Travel	150mm
Nitrogen Flow Rate	15L/min
Nitrogen Pressure	0.05Mpa
Block Qty	1
Max.Consumption	500W
Power Supply	AC220/110V, 50/60Hz
Size(W×D×H)(mm)	310x220x385
Shipping Size (W×D×H)(mm)	450x440x360
N.W./G.W. (kg)	6.6/9
Optional Blocks
Type	Test tube diameter	Capacity	Size(mm)
MD17	0.2ml PCR plate	96	153×95.5×60
MD18	Elisa plate	96	153×95.5×60
