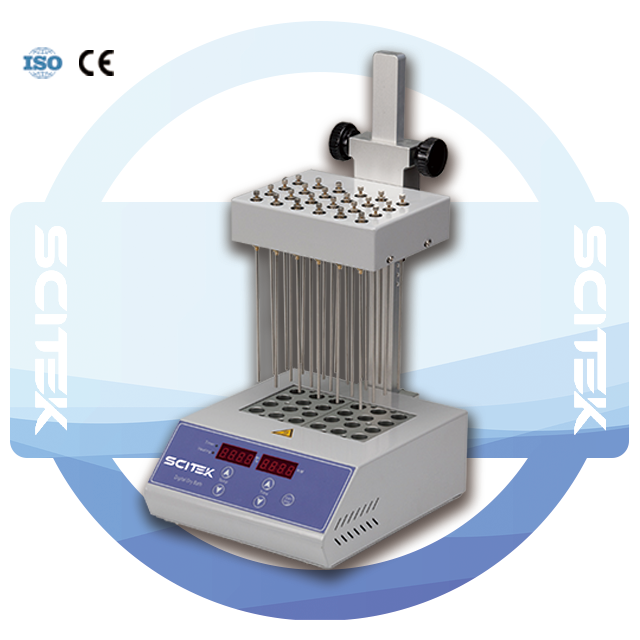

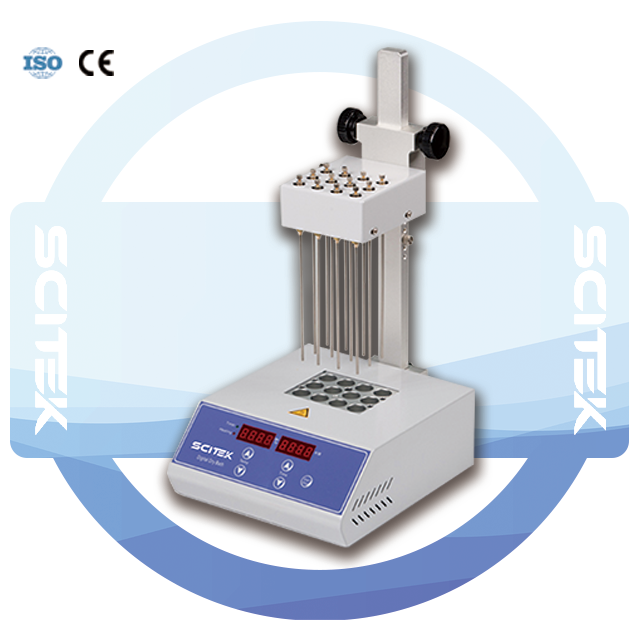

Sample Concentrator

The unique sample concentrator uses a heater to achieve selected set temperatures from 0 to +160°C. The heater can be used for a wide range of applications.

  • Model : SC-2001; SC-2002
  • Temp Accuracy : ±0.5℃ (At 40℃)
  • Temp Uniformity : ≤±0.5℃
  • Display Accuracy : 0.1℃
  • Max Vertical Travel : 200 mm
  • Size(W×D×H)(mm) : 260×220×475

Share the product

Sample Concentrator Advantage:

  • The wide range of temperature settings is suitable for a variety of laboratory applications, including sample concentration, evaporation and other experimental needs.
  • Uniform heating improves the repeatability and accuracy of experiments.
  • The heat conduction medium adopts high-purity aluminum instead of the traditional water bath device, which makes the heating time shorter and the experiments more efficient.
  • Time and air volume can be adjusted to improve the flexibility of the experiment.
  • Equipped with nitrogen flow control and maximum air pressure parameters, it suitable for experiments requiring atmosphere control, such as sample concentration under inert atmosphere.
  • Blow a large number of samples at once; Individual blowing of each sample.
  • Needle length of 200 mm for different sample containers.
  • Supports 1 to 2 heating blocks, providing greater experimental capacity and flexibility to meet the needs of different sizes and types of experiments.

Sample Concentrator Specification:

Model SC-2001 SC-2002
Temp.Setting Range 0℃~160℃
Temp.Contro Range RT.+5°C~160°C
Temp Accuracy ±0.5°C (At 40°C)
±1°C (At 120°C)
Temp Uniformity ≤±0.5°C
Display Accuracy 0.1°C
Time Range 1-99h59min
Heating Time ≤15min (From 25°C to 160°C)
Max Vertical Travel 200mm
Nitrogen Flow Rate 15L/min
Nitrogen Pressure 0.1Mpa
Block Qty 1 2
Max Consumption 300W 500W
Power Supply AC220V/110V, 50/60Hz
Size (W×D×H)(mm) 260x220x475
Shipping Size (W×D×H)(mm) 450x440x360
N.W./G.W. (kg) 7/10 7.5/11
Optional Blocks
Model Tube diameter Capacity
MD50 10mm 12
MD51 12mm 12
MD52 13mm 12
MD53 15mm 12
MD54 16mm 12
MD55 19mm 12
MD56 20mm 12
