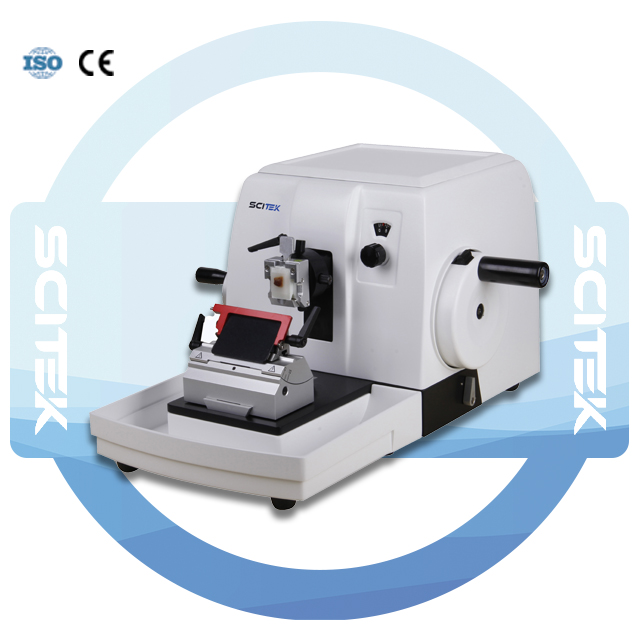

Rotary Microtome MT-R2270

This rotary microtome has adjustable parameters such as slice thickness and speed to suit different samples and experimental needs.

Warning

/www/wwwroot/www.scitekuae.com/wp-includes/class-wp-hook.php

341

Rotary Microtome Feature:

Precision-balanced handwheel stops smoothly at any position and locks quickly at the top or any selected point.
Ergonomic coarse adjustment wheel is positioned close to the user for easy control.
Quick-change clamp system supports both paraffin blocks and universal cassettes.

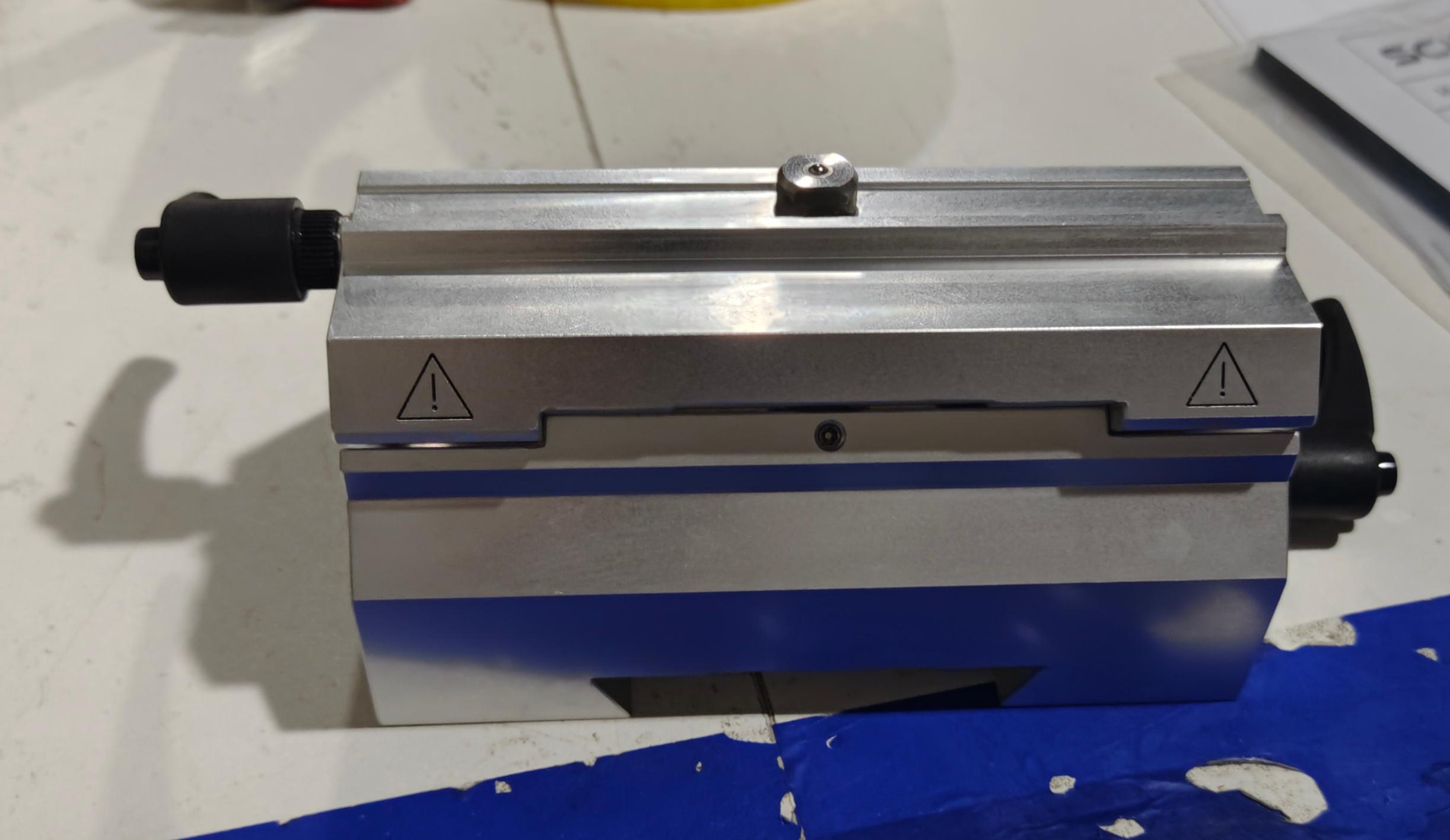

Laterally adjustable knife holder maximizes full blade utilization.
Full-length safety guard with blade-eject push rod enables safe, simple blade replacement.

Rotary Microtome Speciﬁcation:

Model	MT-R2270
Section Thickness Range	0–60 μm
Section Thickness Setting	0.5–2 μm, in 0.5 μm increments
	2–10 μm, in 1 μm increments
	10-20 μm, in 2 μm increments
	20–60 μm, in 5 μm increments
Minimum Section Thickness	0.5 μm
Trimming Thickness Range	0-60 μm
Trimming Thickness Setting	0.5–2 μm, increment 0.5 μm
	2–10 μm, increment 1 μm
	10-20 μm, increment 2 μm
	20–60 μm, increment 5 μm
Maximum Specimen Size	70×70 mm
Precision Error	±5%
Fast Trimming Mode	15 μm and 35μm
Specimen Retraction	≥20 μm(can be turned off)
Total Horizontal Specimen Feed	28 mm
Vertical Specimen Stroke	70 mm
Movement Range of Blade Holder’s Base	70 mm (front-to-back)
Movement Range of Blade Holder	23 mm (left-to-right)
Specimen Orientation	X/Y axis 8°, Rotation 360°
External Size (W×D×H)	590×500×330 mm
Shipping Size (W×D×H)	690×590×500 mm
N.W./G.W.	38/54 kg
