The rotary microtome cuts high quality paraffin sections without the need for a power source.
- Model : MT-R2205
- Section Thickness Range: 0-60 μm
- Maximum Specimen Size: 55×45 mm
- Specimen Feed: 20 mm

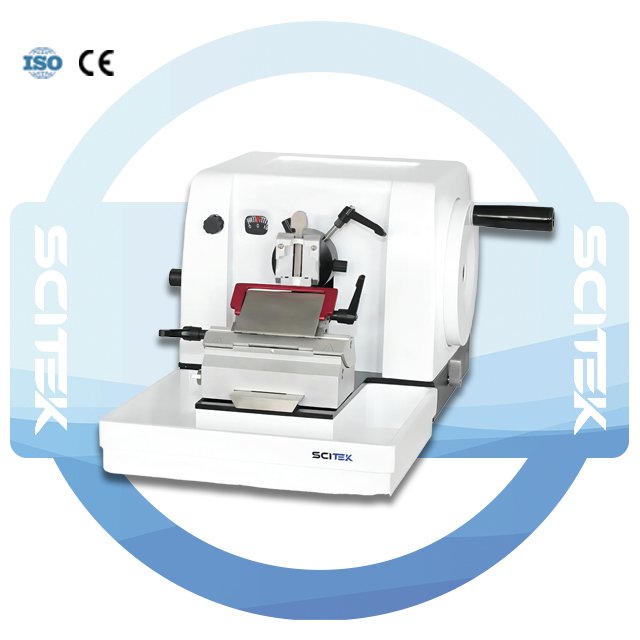

Rotary Microtome MT-R2205
Rotary Microtome Feature:
- Integrated storage case allows convenient placement of blades, wax blocks, and consumables.
- Maintenance-free design eliminates frequent lubrication.
- Right-side handwheel locks at any position, with an additional top-position lock for enhanced safety during blade or block changes.
- Specimen orientation system offers ±8° X/Y adjustment with 360° rotation.
- Specialized blade holder enables safe, direct use of disposable blades while extending blade life.
Rotary Microtome Specification:
| Model | MT-R2205 |
| Section Thickness Range | 0-60 μm |
| Section Thickness Setting | 0-2 μm, in 0.5 μm increments |
| 2-10 μm, in 1 μm increments | |
| 10-20 μm, in 2 μm increments | |
| 20-60 μm, in 5 μm increments | |
| Maximum Specimen Size (H×W) | 55×45 mm |
| Precise Error | ± 5% |
| Total Horizontal Specimen feed | 20 mm |
| Vertical Specimen Stroke | 50 mm |
| External Size (WxDxH) | 496×390×267mm |
| Shipping Size (W×D×H) | 520×520×450 mm |
| N.W./G.W. | 27/41 kg |
