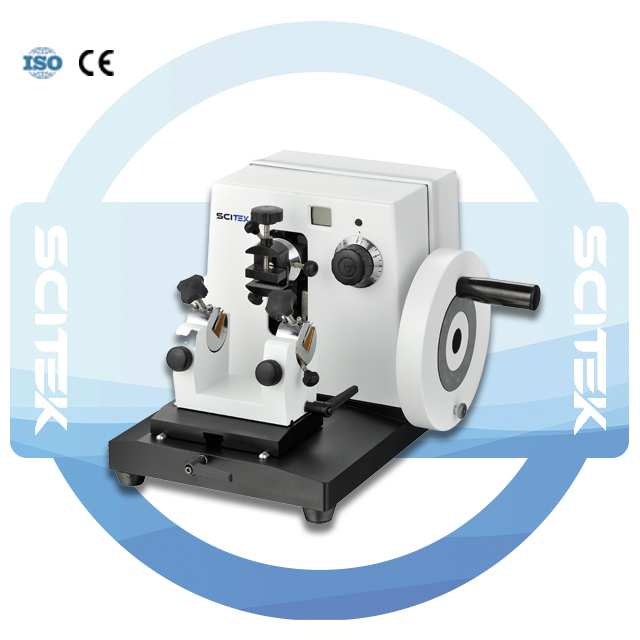

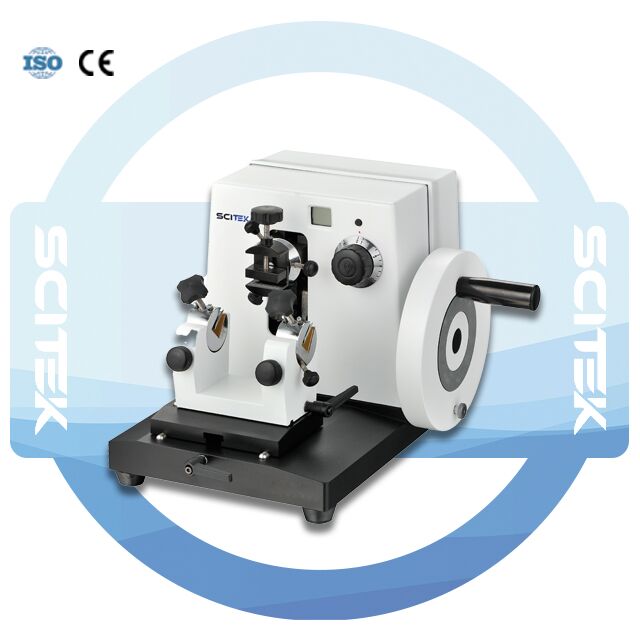

Rotary Microtome MT-R210I

The rotary microtome cuts high quality paraffin sections without the need for a power source.

Warning

/www/wwwroot/www.scitekuae.com/wp-includes/class-wp-hook.php

341

Rotary Microtome Feature:

Easy-to-clean housing for simple maintenance.
Blade holder moves forward/back and left/right for smooth trimming and sectioning.
±8° X/Y axis adjustment enables precise specimen positioning.
Compact footprint saves bench space and simplifies installation.
Intuitive controls allow quick operation with minimal training.
Multiple sectioning options support different materials and thicknesses.
Stable, reliable performance for continuous routine sectioning.
Built-in safety protections reduce operator risk.
Low-maintenance design extends service life.

Rotary Microtome Speciﬁcation:

Model	MT-R210I
Section Thickness Range	0-500 μm
Section Thickness Setting	0 – 25 μm for continuous sectioning, The sectioning thickness can be set at any value ＞ 25 μm
Trimming Thickness Range	0-500 μm
Minimum Sectioning Thickness	1 μm
Maximum Specimen Size	35×25 mm; 50×60 mm (optional)
Precision Error	±10％
Specimen Orientation	X/Y axis 8°
Total Horizontal Specimen Feed	30 mm
Vertical Specimen Stroke	55 mm
Movement Range of Blade Holder’s Base	0-50 mm (front-to-back)
Movement Range of the Blade Holder	0-20 mm (left-to-right)
External Size (W×D×H)	340×335×270 mm
Shipping Size (W×D×H)	500×450×400 mm
N.W./G.W.	19/30 kg
