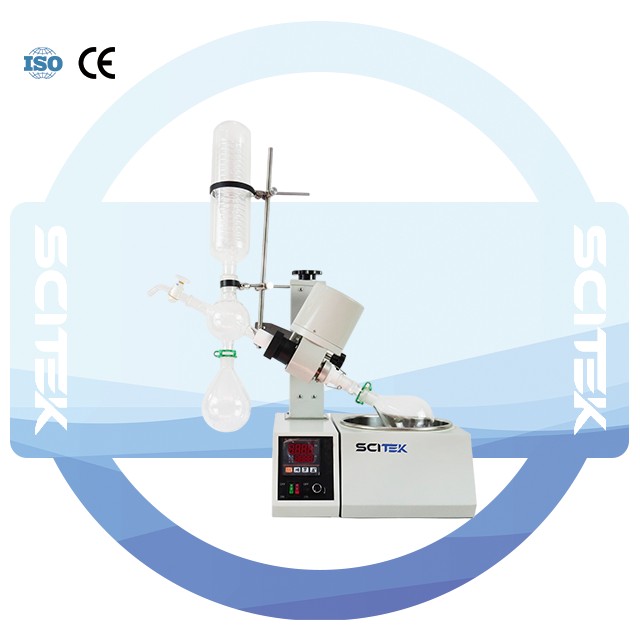

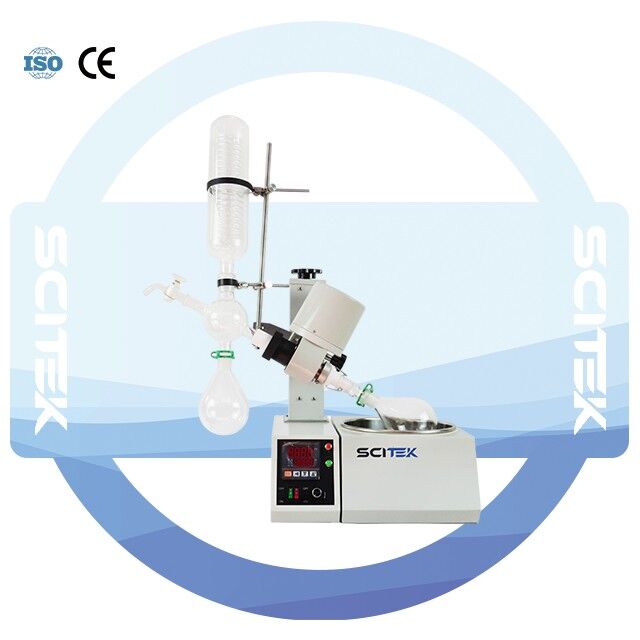

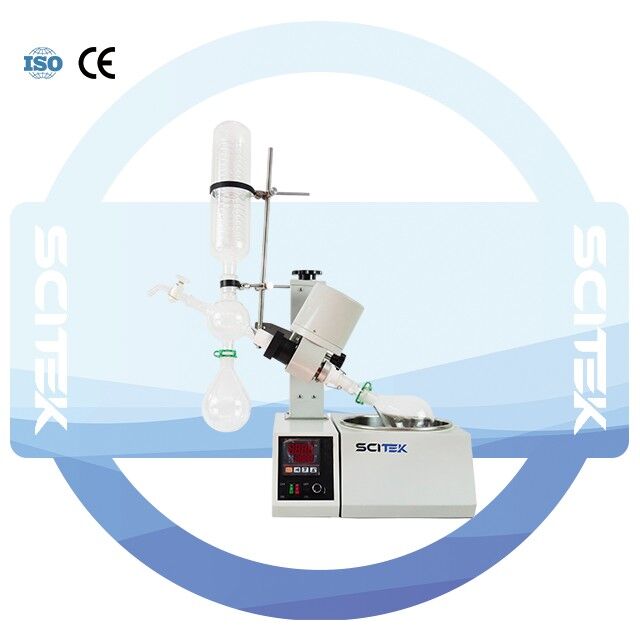

Rotary Evaporator, with Tiltable Host

RE-50R and RE-50RC adopt loose phillips screw, allowing the host to be tilted for enhanced operational flexibility.

Advantage:

Host rotation: Composed of a stable and reliable set of micro motors, tachogenerator, and integrated circuits. Under the action of electronic speed regulation, it can achieve stepless speed regulation from 0 to 120 revolutions per minute.
Host lifting: Adopting a screw driven manual and electric lifting system (electric lifting system only for RE-50RC). Simply rotate the handwheel on top of the column or press the lifting button (button only for RE-50RC) to raise or lower the main unit, which is simple and reliable.
Host tilt: Loose Phillips screw tilt the machine head freely within the range of 0–15 degree. The condensation system made of heat-resistant high-quality glass is mounted on the host and can tilt accordingly, adjusting the angle of the rotating bottle to the desired position for continuous feeding.
A sealed resistance wire heating element is employed, integrated with PID automatic control to ensure stable and precise temperature regulation.
PTFE and fluorinated rubber dual seal, matched with PTFE glass shaft, make it corrosion-resistant, pollution-free, and can maintain high vacuum.
Made of corrosion-resistant stainless steel to extend its service life.
The glass piece is made of GG17 high boron glass.

Speciﬁcation:

Model		RE-50R	RE-50RC
Rotating Flask	Capacity	500 mL
Rotating Flask	Caliber	24# standard ground joint
Receiving Flask	Capacity	500 mL
Receiving Flask	Caliber	24# standard ground joint
Feeding Switch		19# standard ground joint，9 mm barb fitting
Condenser		Vertical coiled tube with spherical ground joint	Vertical coiled tube
Condenser Size (Dia.×H)		85×360 mm
Condensation Area		About 0.17 ㎡
Condenser Circulation Connection Port		11 mm OD barb fitting
Seal		Teflon and fluororubber combination double seal
Temperature Control Accuracy		±1 ℃
Rotational Speed		0-120 rpm
Screen Display		Temperature and speed digital display
Temperature Control		Button
Speed Control		Knob
Motor Power		30 W
Bath Pot Lifting Method		Manual lifting	Electric lifting
Bath Pot Lifting Travel Range		0–120 mm
Maximum Evaporation Capacity (Water)		About 0.9 L/h
Vacuum Degree		-0.098 Mpa
Power Supply		220 V, 50Hz
Temperature Control Range		Water bath, RT to 99 ℃; oil bath, RT to 180 ℃
Bath Pot	Inner Liner Material	304 stainless steel
	Inner Liner Size (Dia.×H)(mm)	220×120	220×125
	Capacity	1 L
	Heating Power	1 kW
	Size (D×W×H)(mm)	250×370×175 mm
Size (D×W×H)(mm)		≈660×365×900	≈660×420×860
Shipping Size (D×W×H)(mm)		570×490×490
G.W.		24 kg
Recommended Equipment (excluding)		Circulating water vacuum pump VP-DIIIS and low-temperature coolant circulation pump LTC-510
