The bottom of the receiving flask is equipped with a piston, allowing quickly recovery of solvents.
Advantage:
Specification:

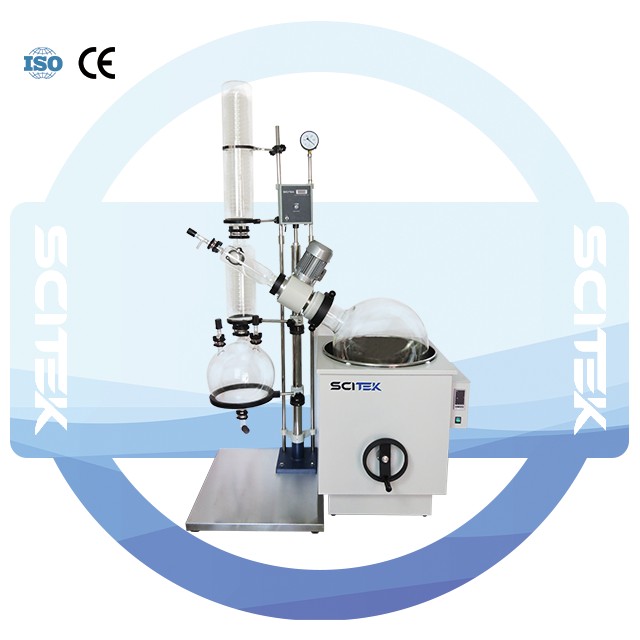

| Model | RE-1000R | RE-2002R | RE-3003R | RE-5005R | |
| Rotating Flask | Capacity | 10 L | 20 L | 30 L | 50 L |
| Caliber | F95 flange port | F125 flange port | |||
| Receiving Flask | Capacity | 5 L | 10 L | 20 L | |
| Caliber | F60 flange port | ||||
| vent valve | F35 flange port*2 | ||||
| discharge valve | F50 flange port | ||||
| Type | Ordinary | ||||
| Feeding Switch | F35 flange port，11 mm OD barb fitting | ||||
| Condenser | Vertical main and auxiliary condenser, double-layer serpentine coil | ||||
| Condensation Area (㎡) | 0.57 | 1.2 | 1.28 | 1.5 | |
| Condenser Size (Dia.×H)(mm) | Main condenser 125×560, auxiliary condenser 125×500 | Main condenser 158×780，auxiliary condenser 158×530 | |||
| Condenser Circulation Connection Port | 15 mm OD refrigerant port, 11 mm OD vacuum port | ||||
| Seal | Teflon and fluororubber dual sealing | ||||
| Temperature Control Accuracy | ±1 ℃ | ||||
| Rotational Speed | 0-120 rpm variable frequency speed regulation | 0-90 rpm variable frequency speed regulation | |||
| Screen Display | Temperature and speed digital display | ||||
| Temperature Control | Button | ||||
| Speed Control | Electronic stepless speed regulation, knob adjustment | ||||
| Motor Power (W) | 180 | 250 | |||
| Bath pot Lifting Method | Handwheel lifting | ||||
| Bath pot Lifting Travel Range | ≈0-180 mm | ||||
| Evaporation Rate (Water) (L/h) | ＞3.2 | ＞5 | ＞9 | ||
| Vacuum Degree | -0.098 Mpa | ||||
| Power Supply | 220 V, 50 Hz | 380 V, 50Hz | |||
| Temperature Control Range | Water bath, RT to 99 ℃; oil bath, RT to 180 ℃ (can customize higher temperature oil bath pot for RT to 260 ℃) | ||||
| Bath Pot | Inner Liner Material | 304 stainless steel | |||
| Inner Liner Size (Dia.×H)(mm) | 400×230 | 450×260 | 550×320 | ||
| Capacity (L) | About 10 | About 20 | About 50 | ||
| Heating Power (kW) | 4 | 6 | |||
| Size (D×W×H)(mm) | ≈1100×600×2000 | ≈1200×600×2000 | ≈1250×700×2250 | ||
| Shipping Size (D×W×H)(mm) | Shelf | 1350×550×650 | 1280×760×710 | 1310×430×470 | |
| Glass | 1350×550×650 | 1280×760×710 | 1030×900×620 | ||
| Bath Pot | 650×640×730 | 660×660×730 | 770×750×830 | ||
| G.W. (kg) | 125 | 145 | 175 | 190 | |
| Recommended Equipment (excluding) | Circulating water vacuum pump VP-95BW and low-temperature coolant circulation pump LTC-1040 | Circulating water vacuum pump VP-95BW and low-temperature coolant circulation pump LTC-2040 | Circulating water vacuum pump VP-95BW and low-temperature coolant circulation pump LTC-5040 | ||
