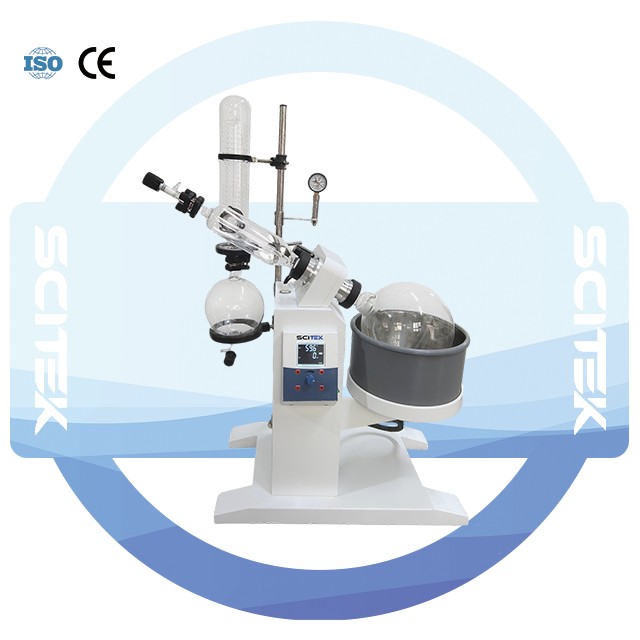

Rotary Evaporator, RE-6000R

An integrated LCD screen is utilized to display temperature and rotational speed.

Advantage:

The structural adopts an upright style, making full use of space to arrange rotating, evaporating, condensing, and receiving devices, with a small footprint.
The sealing element adopts a dual seal composed of Teflon and fluororubber, with good air tightness and long service life, and can be regularly disassembled, cleaned or replaced.
The condenser made of high-temperature-resistant glass, featuring a double reflux design and flange port, paired with flange port receiving flask for quick assembly and disassembly.
Adops AC motor, electronic stepless speed regulation, and synchronous belt drive device. Increase the diameter of the transmission shaft tube, so the evaporation pipeline is 1.5 times larger than that of general instruments, improving evaporation efficiency.
Integrated LCD screen, used for displaying temperature and speed, clear and beautiful.
The constant temperature bath pot is made of 304 stainless steel and can be adjusted to the appropriate position by electric lifting.

Speciﬁcation:

Model		RE-6000R
Rotating Flask	Capacity	6 L
Rotating Flask	Caliber	F50 flange port
Receiving Flask	Capacity	3 L
	Caliber	35# spherical ground joint
	vent valve	F35 flange port
	discharge valve	F35 flange port
Type		Normal
Feeding Switch		F35 flange port，11 mm OD barb fitting
Condenser		Vertical condenser, double-layer serpentine coil
Condensation Area		About 0.5 ㎡
Condenser Circulation Connection Port		11 mm OD barb fitting
Seal		Teflon and fluororubber dual sealing
Temperature Control Accuracy		±1 ℃
Rotational Speed		Start–120 rpm, variable frequency speed control
Screen Display		Temperature and speed LCD display
Temperature Control		Knob
Speed Control		Electronic stepless speed regulation, knob adjustment
Motor Power		AC 40 W
Bath pot Lifting Method		Electric lifting
Bath pot Lifting Travel Range		0–150 mm
Vacuum Degree		-0.098 Mpa
Power Supply		220 V, 50 Hz
Temperature Control Range		Water bath, RT to 99 ℃; oil bath, RT to 180 ℃ (can customize higher temperature oil bath pot for RT to 260 ℃)
Bath Pot	Inner Liner Material	304 stainless steel
	Inner Liner Size (Dia.×H)(mm)	320×180 mm
	Capacity	About 6 L
	Heating Power	3 kW
Size (D×W×H)		≈900×800×1200mm
Shipping Size (D×W×H)		1000×900×1000 mm
G.W.		70 kg
Recommended Equipment (excluding)		Circulating water vacuum pump VP-95BW and low-temperature coolant circulation pump LTC-1040
