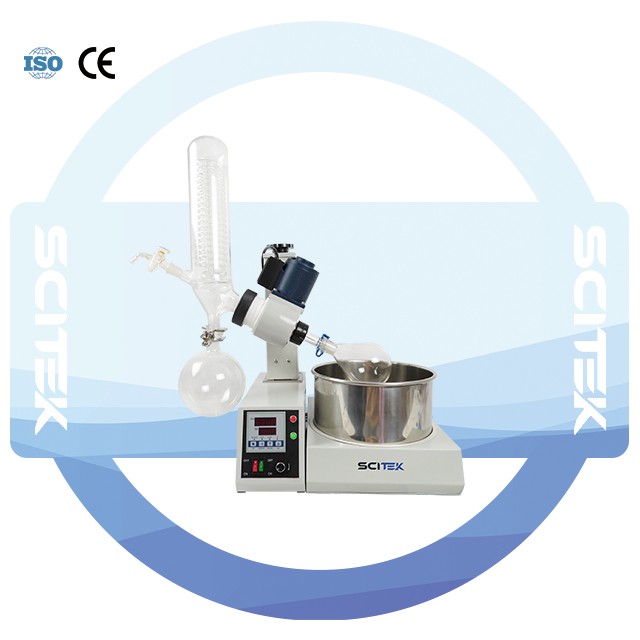

Rotary Evaporator, RE-5300R

Loose Phillips screw tilt the Rotary Evaporator RE-5300R freely within the range of 0–15 degree.

Advantage:

Host rotation: Composed of a stable and reliable set of micro motors, tachogenerator, and integrated circuits. Under the action of electronic speed regulation, it can achieve stepless speed regulation from 0 to 120 revolutions per minute.
Host lifting: Adopts a screw driven electric and manual lifting system. Simply rotate the handwheel on top of the column or press the lifting button to raise or lower the host, which is simple and reliable.
Loose Phillips screw tilt the machine head freely within the range of 0–15 degree. The condensation system can tilt accordingly, adjusting the angle of the rotating flask to the desired position.
A sealed resistance wire heating element is employed, integrated with PID automatic control to ensure stable and precise temperature regulation.
Double sealing with PTFE and fluorinated rubber, combined with glass shafts. It is corrosion-resistant, pollution-free, and can maintain a high vacuum.

Speciﬁcation:

Model		RE-5300R
Rotating Flask	Capacity	500 mL
Rotating Flask	Caliber	24# standard ground joint
Receiving Flask	Capacity	500 mL
Receiving Flask	Caliber	24# standard ground joint
Feeding Switch		19# standard ground joint, 9mm barb fitting
Condenser		Vertical coiled tube
Condenser Size (Dia.×H)		85×360 mm
Condensation Area		About 0.17 ㎡
Condenser Circulation Connection Port		11mm OD barb fitting
Seal		Teflon and fluororubber dual sealing
Temperature Control Accuracy		±1℃
Rotational Speed		0–120 rpm
Screen Display		Temperature and speed digital display
Temperature Control		Button
Speed Control		Knob
Motor Power		30 W
Bath Pot Lifting Method		Electric lifting
Bath Pot Lifting Travel Range		0–120 mm
Maximum Evaporation Capacity (Water)		About 0.9 L/h
Vacuum Degree		-0.098 Mpa
Power Supply		220 V, 50 Hz
Temperature Control Range		Water bath, RT to 99 ℃; oil bath, RT to 180 ℃
Bath Pot	Inner Liner Material	304 stainless steel
	Inner Liner Size (Dia.×H)(mm)	220×125 mm
	Capacity	About 1 L
	Heating Power	1 kW
	Size (D×W×H)(mm)	250×370×175 mm
Size (D×W×H)		≈660×420×860 mm
Shipping Size (D×W×H)		570×490×490 mm
G.W.		24 kg
Recommended Equipment (excluding)		Circulating water vacuum pump VP-DIIIS and low-temperature coolant circulation pump LTC-510
