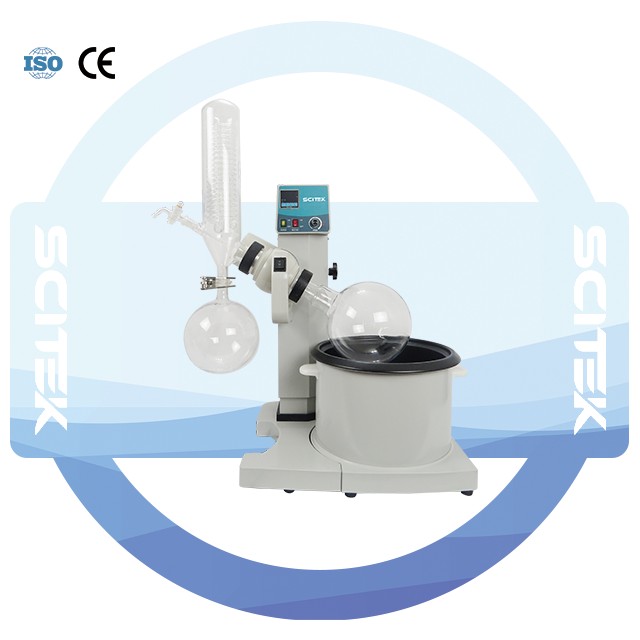

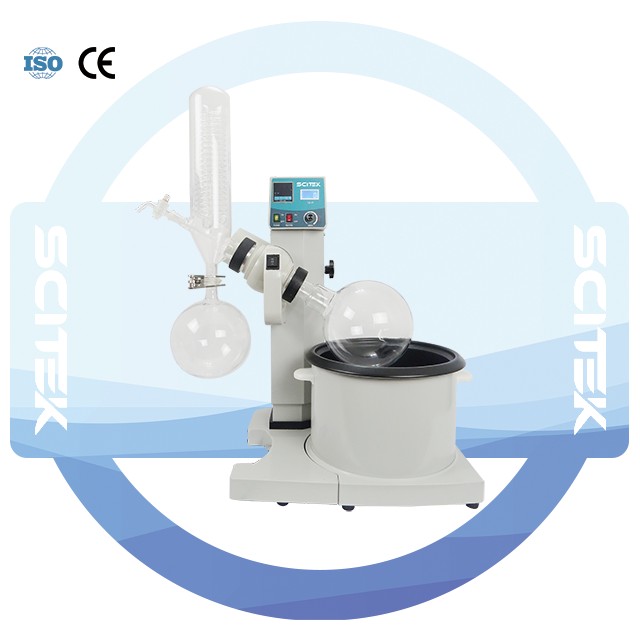

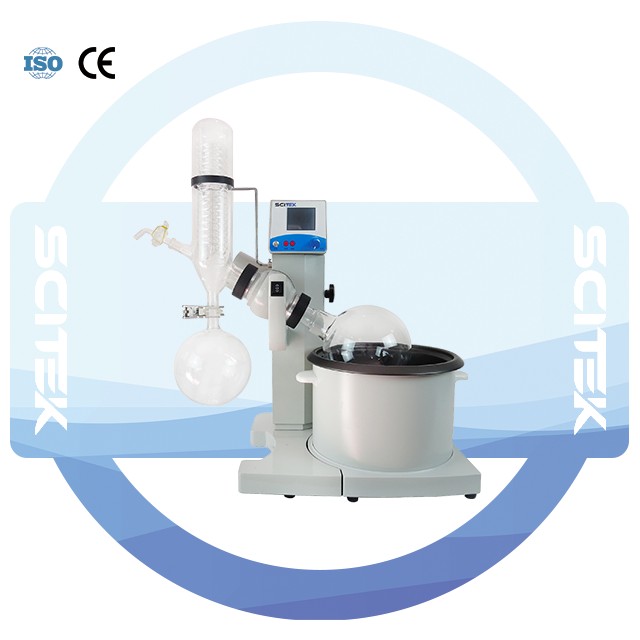

Rotary Evaporator, RE-3000 Series

The RE-3000 series is electrically operated for elevation, making it convenient for your experimental operations.

Warning

/www/wwwroot/www.scitekuae.com/wp-includes/class-wp-hook.php

341

Rotary Evaporator Feature:

Automatic electric lifting with rocker control, 0–150 mm fast travel.
Model-specific control: temperature display or temperature/speed dual display.
Rust-proof aluminum alloy, engineering plastic, and heat-resistant glass construction.
BLDC motor with stepless speed control and enlarged shaft for higher evaporation efficiency.
PTFE + fluororubber dual seal, airtight, durable, and easy to maintain.
Vertical double-reflux glass condenser with spherical joints for quick assembly.
PTFE–aluminum composite heating bath with enclosed, stable electric heater.
Integrated LCD for temperature and speed adjustment (RE-3000CR only).

Rotary Evaporator Speciﬁcation:

Model		RE-3000AR	RE-3000BR	RE-3000CR
Rotating Flask	Capacity	3 L
Rotating Flask	Caliber	50# flange port
Receiving Flask	Capacity	2 L
Receiving Flask	Caliber	35# spherical ground joint
Feeding Switch		19# standard ground joint, 9 mm barb fitting
Condenser		Vertical coiled tube
Condenser Size (Dia.×H)		90×430 mm
Condenser Circulation Connection Port		11 mm OD barb fitting
Seal		Teflon and fluororubber dual sealing
Temperature Control Accuracy		±1 ℃
Rotational Speed		20–200 rpm, electronic stepless speed control
Screen Display		Temperature digital display	Temperature and speed digital display	Temperature and speed LCD display
Temperature Control		Button
Speed Control		Knob
Motor Power		40 W
Lifting Method		Electric lifting
Lifting Travel Range		0–150 mm
Maximum Evaporation Capacity (Water)		About 1.5 L/h
Vacuum Degree		-0.098 Mpa
Power Supply		220 V/50 Hz
Temperature Control Range		Water bath, RT to 99 ℃; oil bath, RT to 180 ℃
Bath Pot	Inner Liner Material	Teflon aluminum alloy composite pot
	Inner Liner Size (Dia.×H)(mm)	280×160 mm
	Capacity	5 L
	Heating Power	1.5 kW
	Size (D×W×H)(mm)	400×360×280 mm
Size (D×W×H)(mm)		≈850×480×900	≈800×450×980	≈850×480×900
Shipping Size (D×W×H)(mm)		690×610×650
G.W.		34 kg
Recommended Equipment (excluding)		Circulating water vacuum pump VP-DIIIS and low-temperature coolant circulation pump LTC-530
