Equipped with a vacuum gauge, it can intuitively display the current vacuum level.
Advantage:
Specification:

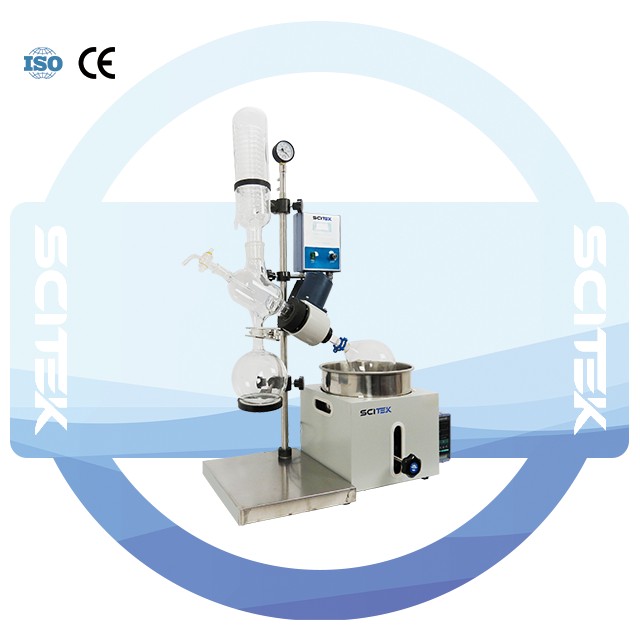

| Model | RE-201R | |
| Rotating Flask | Capacity | 1 L（Can be replaced with 50–500 mL） |
| Caliber | 24# standard ground joint | |
| Receiving Flask | Capacity | 1 L |
| Caliber | 35# spherical ground joint | |
| Feeding Switch | 19# standard ground joint，9 mm barb fitting | |
| Condenser | Vertical coiled tube | |
| Condenser Size (Dia.×H)(mm) | 85×360 | |
| Condensation Area | 0.12 ㎡ | |
| Condenser Circulation Connection Port | 11 mm OD barb fitting | |
| Seal | Teflon and fluororubber combination double seal | |
| Temperature Control Accuracy | ±1 ℃ | |
| Rotational Speed | 0–120 rpm | |
| Screen Display | Temperature and speed digital display | |
| Temperature Control | Button | |
| Speed Control | Knob | |
| Motor Power | 40 W | |
| Lifting Method | Manual lifting | |
| Lifting Travel Range | ≈0–140 mm | |
| Maximum Evaporation Capacity (Water) | About 0.9 L/h | |
| Vacuum Degree | -0.098 Mpa | |
| Power Supply | 220 V, 50 Hz | |
| Temperature Control Range | Water bath, RT to 99 ℃; oil bath, RT to 180 ℃ | |
| Inner Liner Size (Dia.×H) | 250×150 mm | |
| Capacity | 2 L | |
| Heating Power | 1.5 kW | |
| Size (D×W×H) | 330×300×230 mm | |
| Size (D×W×H) | ≈650×340×930 mm | |
| Shipping Size (D×W×H) | 570×490×490 mm | |
| G.W. | 25 kg | |
| Recommended Equipment (excluding) | Circulating water vacuum pump VP-DIIIS and low-temperature coolant circulation pump LTC-510 | |
