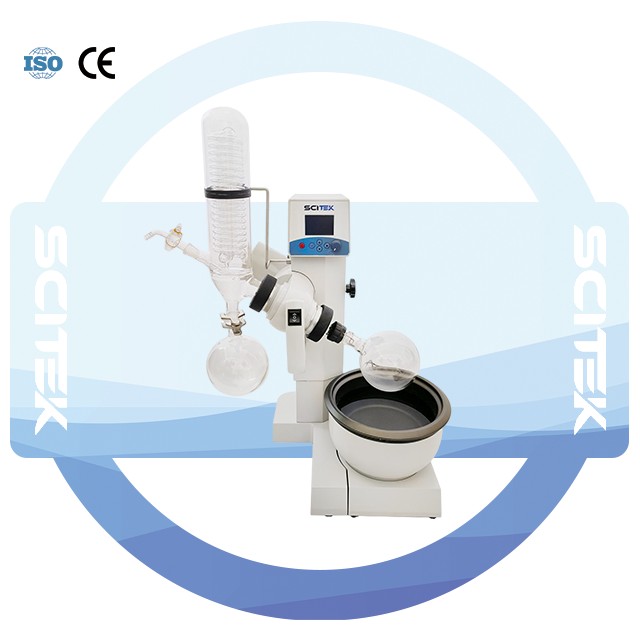

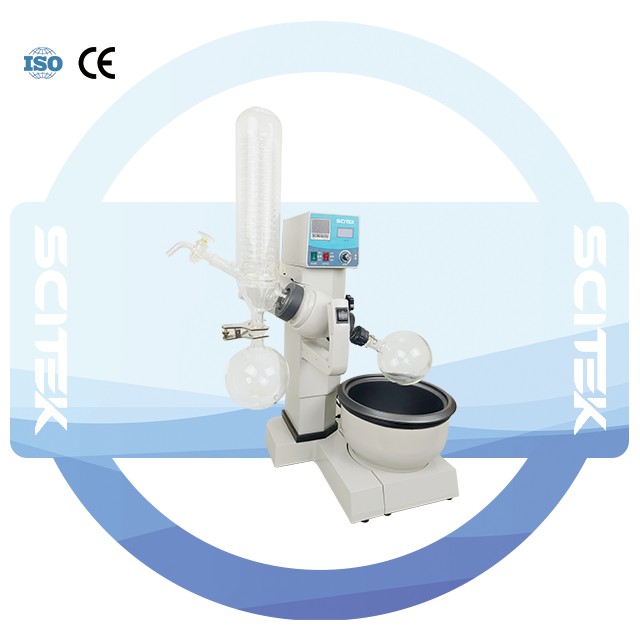

Rotary Evaporator, RE-2000 Series

The digital display ensures higher precision for your experimental measurements.

Warning

/www/wwwroot/www.scitekuae.com/wp-includes/class-wp-hook.php

341

Rotary Evaporator Feature:

Automatic hydraulic-assisted lifting with rocker control, 0–150 mm travel.
Model-specific control: temperature display or temperature/speed dual display.
Rust-proof aluminum alloy, engineering plastic, and heat-resistant glass construction.
Gear motor with stepless speed control and enlarged shaft for higher evaporation efficiency.
Heat-resistant glass + fluoroplastic evaporation pipeline with durable vacuum seals.
Vertical double-reflux glass condenser with spherical joints for quick assembly.
PTFE–aluminum composite heating bath with enclosed heater, stable and movable.

Rotary Evaporator Speciﬁcation:

Model		RE-2000AR	RE-2000BR	RE-2000CR
Rotating Flask	Capacity	1 L (optional 2 L)
Rotating Flask	Caliber	24# standard ground joint
Receiving Flask	Capacity	1 L (optional 2 L)
Receiving Flask	Caliber	35# spherical ground joint
Feeding Switch		19# standard ground joint, 9mm barb fitting
Condenser		Vertical coiled tube
Condenser Size (Dia.×H)		85×400 mm
Condensation Area		About 0.17 ㎡
Condenser Circulation Connection Port		11 mm OD barb fitting
Seal		Teflon and fluororubber dual sealing
Temperature Control Accuracy		±1 ℃
Rotational Speed		0–200 rpm
Screen Display		Temperature digital display	Temperature and speed digital display	Temperature and speed LCD display
Temperature Control		Button
Speed Control		Knob
Motor Power		40 W
Lifting Method		Electric lifting
Lifting Travel Range		0–150 mm
Maximum Evaporation Capacity (Water) (L/h)		About 0.9 L/h
Vacuum Degree		-0.098 Mpa
Power Supply		220 V, 50 Hz
Temperature Control Range		Water bath, RT to 99 ℃; oil bath, RT to 180 ℃
Bath Pot	Inner Liner Material	Teflon aluminum alloy composite pot
	Inner Liner Size (Dia.×H)(mm)	280×160	230×140	280×160
	Capacity	2 L
	Heating Power	1.2 kW
	Size (D×W×H)	400×360×260 mm
Size (D×W×H)		700×430×810 mm
Shipping Size (D×W×H)		730×490×600 mm
G.W.		30 kg
Recommended Equipment (excluding)		Circulating water vacuum pump VP-DIIIS and low-temperature coolant circulation pump LTC-510
