Dual-stage condensation system for enhanced cooling efficiency and improved vapor recovery.

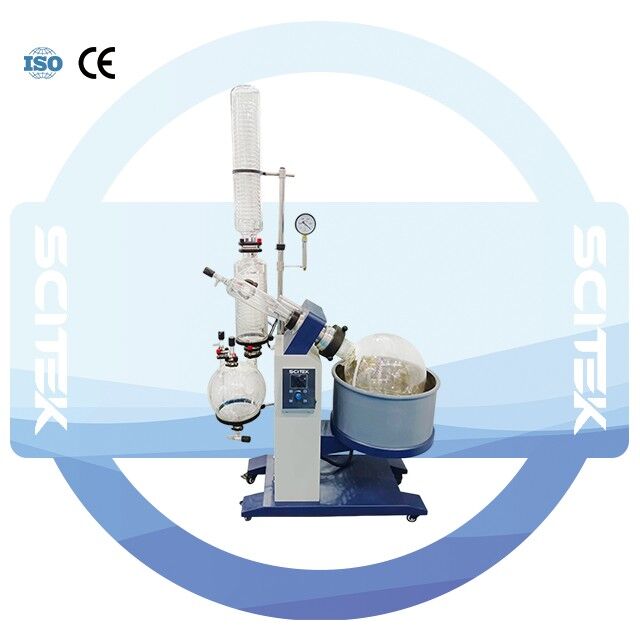

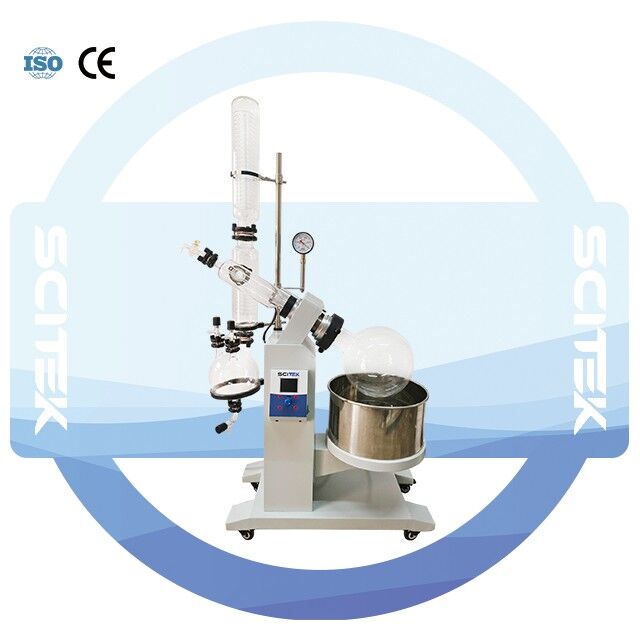

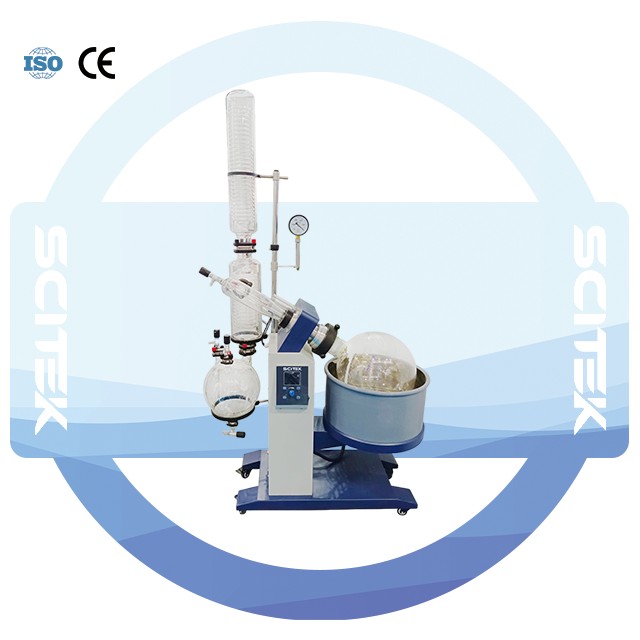

| Model | RE-5200R | RE-5220R | RE-5250R | |
| Rotating Flask | Capacity | 10 L | 20 L | 50 L |
| Caliber | F125 flange port | |||
| Receiving Flask | Capacity | 5 L | 10 L | 20 L |
| Caliber | F50 flange port | F60 flange port | ||
| vent valve | F35 flange port*2 | |||
| discharge valve | F50 flange port | |||
| Type | Normal | |||
| Feeding Switch | F35 flange port，11 mm barb fitting | |||
| Condenser | Vertical main and auxiliary condenser, double-layer serpentine coil | |||
| Condensation Area (㎡) | 0.57 | 1.2 | 1.5 | |
| Condenser Size (Dia.×H)(mm) | Main condenser 125×560，secondary condensation 125×500 | Main condenser 158×780，secondary condensation 158×530 | ||
| Condenser Circulation Connection Port | 15 mm OD refrigerant port, 11 mm OD vacuum port | 15 mm OD barb fitting | ||
| Seal | Teflon and fluororubber dual sealing | |||
| Temperature Control Accuracy | ±1 ℃ | |||
| Rotational Speed | 0-120 rpm, variable frequency speed control | 0-90 rpm, variable frequency speed control | ||
| Screen Display | Temperature and speed LCD display | |||
| Temperature Control | Button | |||
| Speed Control | Electronic stepless speed regulation, knob adjustment | |||
| Motor Power (W) | 250 | 140 | ||
| Bath pot Lifting Method | Electric lifting | |||
| Bath pot Lifting Travel Range | ≈0-180 mm | |||
| Evaporation Rate (Water) (L/h) | ＞3.2 | ＞5 | ＞12 | |
| Vacuum Degree | -0.098 Mpa | |||
| Power Supply | 220 V, 50 Hz | 380 V, 50Hz | ||
| Temperature Control Range | Water bath, RT to 99 ℃; oil bath, RT to 180 ℃ (can customize higher temperature oil bath pot for RT to 260 ℃) | |||
| Bath Pot | Inner Liner Material | 304 stainless steel | ||
| Inner Liner Size (Dia.×H)(mm) | 400×240 | 450×260 | 550×320 | |
| Capacity (L) | About 10 | About 20 | About 50 | |
| Heating Power (kW) | 4 | 6 | ||
| Size (D×W×H)(mm) | ≈970×550×1800 | ≈1300×780×2500 | ||
| Shipping Size (D×W×H)(mm) | 1000×600×1200 | 1050×620×1300 | 1150×700×1470 | |
| G.W. (kg) | 108 | 125 | 155 | |
| Recommended Equipment (excluding) | Circulating water vacuum pump VP-95BW and low-temperature coolant circulation pump LTC-1040 | Circulating water vacuum pump VP-95BW and low-temperature coolant circulation pump LTC-2040 | Circulating water vacuum pump VP-95BW and low-temperature coolant circulation pump LTC-5040 | |
