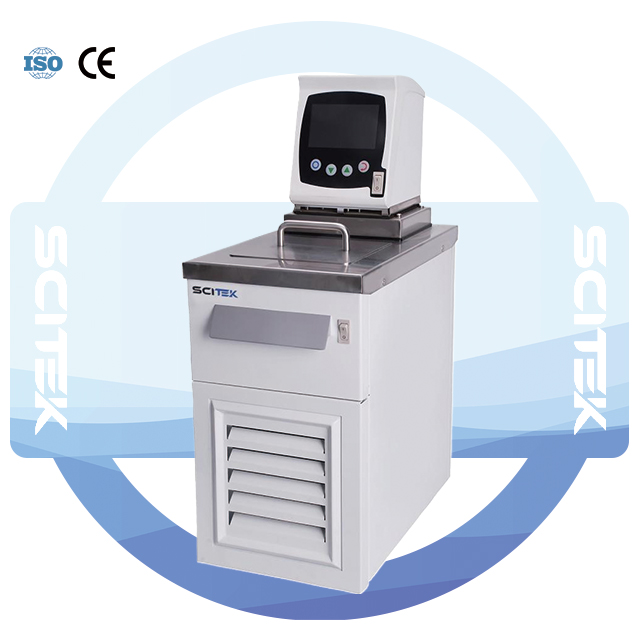

Refrigerated and Heating Circulator

Refrigerated and Heating Circulator

This refrigerated and heating circulator is designed to ensure the accuracy and repeatability of liquid temperature control programmes.

Model : RHC-65L; RHC-620H
Tank Volume : 6L
Working Temperature Range : -5~100℃; -20~200℃
Refrigerant : R134a
Bath Sizes (L×W×H)(mm) : 320×180×150

Share the product

分类： Circulating Baths, Recirculating Chillers 标签： Refrigerated and Heating Circulator

详细资料

Applications of Refrigerated and Heating Circulator:

Refrigerated and heating circulator can be widely used in oil, physical, chemical, pharmaceutical, environmental protection and other fields. More specifically, it can be uesd in precision temperature control equipment such as fermentation tank, polarimeter, refractometer, spectrophotometer, electrophoresis system, chromatographic column, viscometer, rotation evaporation instrument, rheometer.

Refrigerated and Heating Circulator Advantage:

Convenience function: Parameters memory function, temperature correction.
ECO-refrigerant and high quality compressor guarantee the cooling system eco-friendly and powerful.
Low Noise design: use high quality compressor and mute pump.
Robust water tank: ultra-slushing and rust-proof.
Bright LCD temperature display.
Compact design, removable venting grid for convenient cleaning to maintain cooling performance and drain off water.

Refrigerated and Heating Circulator Specification:

Model	RHC-65L	RHC-620H
Working Temperature Range	-5 ~ 100 ℃	-20 ~ 200 ℃
Temperature Control	Fuzzy PID
Temperature Stability	±0.03 °C
Temperature Sensorl	PT100
Display Resolution	0.1 °C
Heater Capacity	2000 W
Cooling Capacity	250W
Refrigerant	R134a
Pump Capacity Pressure	0.35 bar
Pump Flow Rate	10L/min
Ambient Temperature	-20 ~ 70 °C
Output	RS232/RS485(optional)
Volume	6L
Bath Opening (L×W) (mm)	160×160
Bath Sizes (L×W×H) (mm)	320×180×150
Sizes (L×W×H)(mm)	400×250×650
Power Supply	220V AC±10% 50Hz
Weight (kg)	25
Package Info.	600×420×940mm, 40 kg plywood
