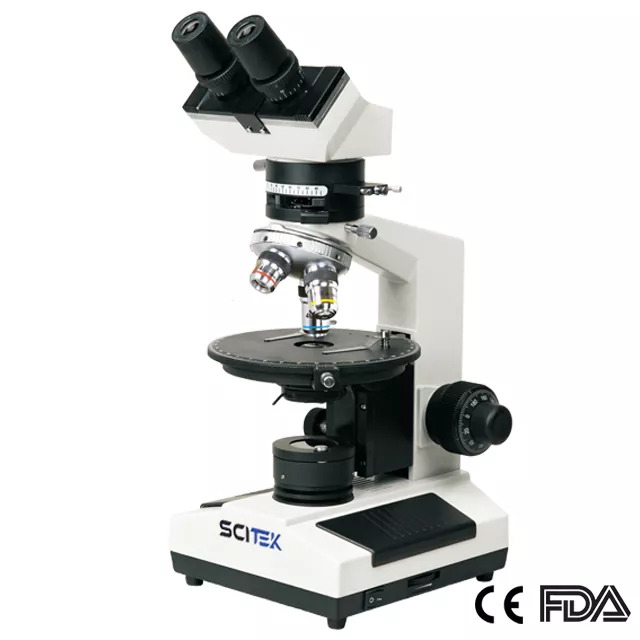

Polarizing Microscope

Model : MSC-P107B; MSC-P107T
Viewing Head : Sliding Binocular Head at 45°, 360° Rotatable / Sliding Trinocular Head at 45°, 360°Rotatable
Eyepiece : Eyepiece WF10× / 18 with Scale of Crosshair
Objectives : Strain Free Achromatic Objective 4×, 10×, 40×

Warning

/www/wwwroot/www.scitekuae.com/wp-includes/class-wp-hook.php

341

Polarizing Microscope Specification:

Model	MSC-P107B	MSC-P107T
Viewing Head	Sliding Binocular Head at 45°, 360° Rotatable	Sliding Trinocular Head at 45°, 360°Rotatable
Eyepiece	Eyepiece WF10×/ 18 with Scale of Crosshair
Nosepiece	Toward Quadruple Nosepiece, Center Adjustable
Objective	Strain Free Achromatic Objective 4×, 10×, 40×
Analyzer	Rotatable Analyzer with Gradation 0°~90°
Bertrand Lens	Bertrand Lens, Sliding in/ out of Optical Path
Revolving Round Stage	Diameter Φ160mm, Graduated in 1° Increments, Minimum Resolution 6’ When Using Vernier Scale
Condenser	Abbe Condenser with Iris Diaphragm & Filter
Focusing	Coaxial Coarse & Fine Adjustment, Range 28mm, Fine Division 0.002mm
Polarizer	Sliding In/ Out of Optical Path, Located on the Top of Collector
Illumination	6V/ 20W Halogen Lamp, Brightness Adjustable
Power Supply	AC220/110V±10%, 50/60Hz
Shipping Size(W×D×H)(mm)	327x273x425
G.W. (kg)	8
