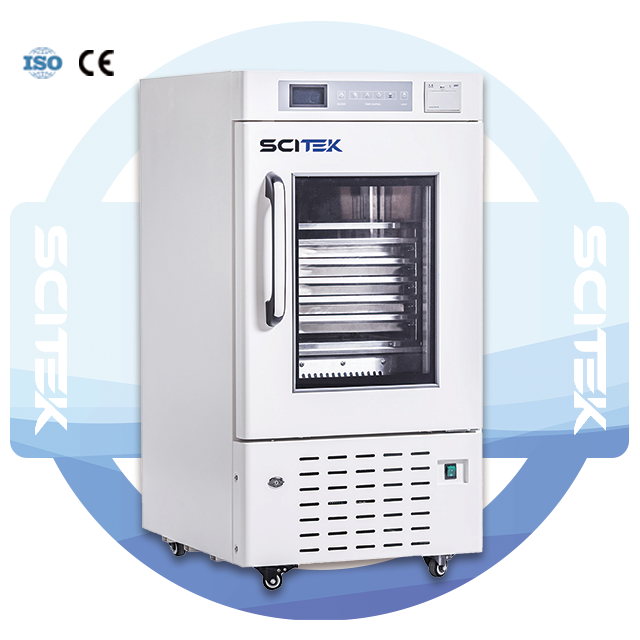

Platelet Incubator

Platelet Incubator

Model : ICB-P5; ICB-P10
Cooling Method : Forced air cooling
Temperature Range : 20~24℃
Temp. controller : Microprocessor
Internal Size(W×D×H)(mm) : 427x360x457; 432x462x728

Share the product

Category: Platelet Incubator

Details

Platelet Incubator Feature:

304 stainless steel inner cavity for easy cleaning.
Double-layer insulated glass door with inert gas for efficient cooling.
Fan and forced circulation ensure consistent temperature with a large digital display.
UV sterilization auto-off when door opens for safety.
High-quality oscillating slides for durability and low noise.
Safety alarms for power, temperature, door, and device failures.
Temperature printer monitors and logs temperature changes.
4 casters with locks for easy mobility and stability.

Platelet Incubator Specifications:

Model		ICB-P5	ICB-P10
Preformance	Cooling Method	Forced air cooling
	Defrost	No frost
	Power Failure Backup	72h
	Temperature Range	20~24℃
	Ambient Temperature	10~32℃
	Noise(db)	49	50
Refrigeration System	Refrigerant	R134a
	Temp. controller	Microprocessor
	Sensor	NTC
	Display	Digital display
	External Material	SPCC sprayed steel
	Internal Material	Stainless steel
Alarms	High/Low Temperature	Standard
	Power Failure	Standard
	Sensor Error	Standard
	Door Ajar	Standard
	Light	UV
Other	Blood bags (450ml)/Drawer	10/5 layers	20/10 layers
	Thermal Printer	Standard
	Oscillation Amplitude	50±10mm
	Oscillation Frequency	60±5e/min
Electrical Data	Power Supply	AC220V, 50/60Hz; 110V, 60Hz
	Consumption(W)	197	280
	Current(A)	0.9	1.27
	Power consumption (kWh/24h)	2.69	4.4
Size	Internal Size (W×D×H)(mm)	427x360x457	432x462x728
	External Size (W×D×H)(mm)	522x600x1035	520x340x1290
	Shipping Size (W×D×H)(mm)	600x715x1230	605x720x1480
	CBM(m³)	0.5	0.8
	N.W./G.W. (kg)	65/95	85/120
