- Model : IVC-PC600
- Capacity(L) : 80L
- Control System : PLC
- Filter : HEPA Filter x2
- External Size(W×D×H)(mm) : 1000x710x1770

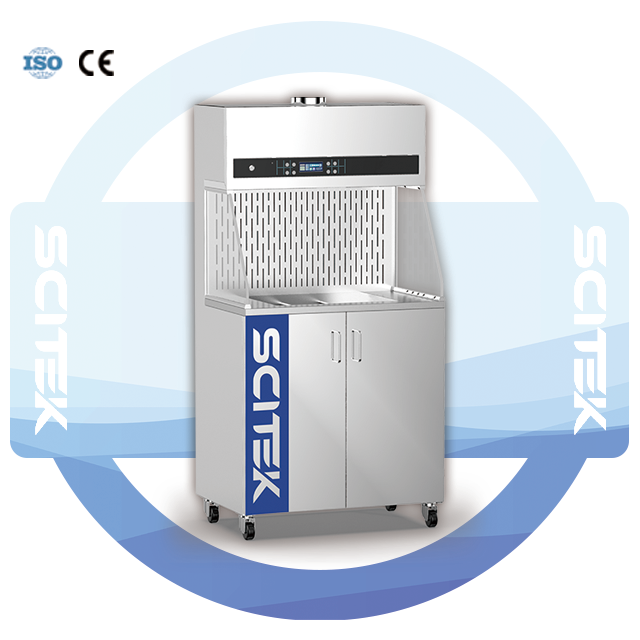

Padding Collection System
Application of Padding Collection System:
The padding collection system, developed by our company, addresses the challenges of disposing of cage bedding in animal labs. It protects operators and prevents the release of odors or bedding foam during disposal. The system features a HEPA filter and a negative pressure blower, which suction the bedding into a storage tank for containment.
Advantages of Padding Collection System:
- Full negative pressure HEPA-filtered exhaust captures bedding foam and odors, ensuring safety for personnel.
- Equipped with a movable 80L large-capacity waste bin for easy disposal.
- Large glass windows on both sides with top-mounted lighting for enhanced visibility.
- PLC control system provides real-time air volume display for precise monitoring.
Padding Collection System Specifications:
| Model | IVC-PC600 | ||
| Capacity(L) | 80L | ||
| Control system | PLC | ||
| Display | 4.3 inch LCD touch screen | ||
| Filter | HEPA Filter x2 | ||
| Work Surface Height | 946mm | ||
| Structure | Material | External | 304 stainless steel |
| Internal | 304 stainless steel | ||
| Caster | Four universal casters at the bottom of the instrument for easy movement | ||
| Total Consumption | 500W | ||
| Power Supply | 220V, 50/60Hz | ||
| External Size(W×D×H)(mm) | 1000x710x1770 | ||
| Shipping Size(W×D×H)(mm) | 1100x820x1960 | ||
| N.W./G.W. (kg) | 70/90 | ||
