- Model : IVC-PA800
- Upper Storage Capacity : 0.035m³
- Lower Storage Capacity : 0.2m³
- Control System : PLC
- Size(W×D×H)(mm) : 1118x781x1975

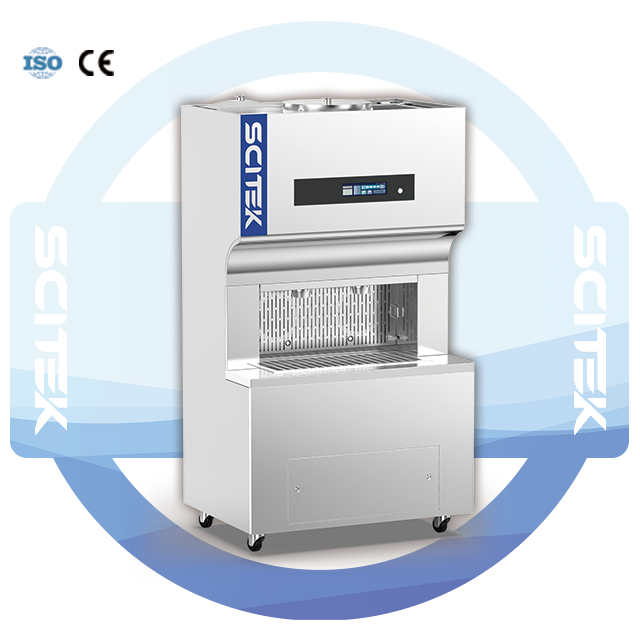

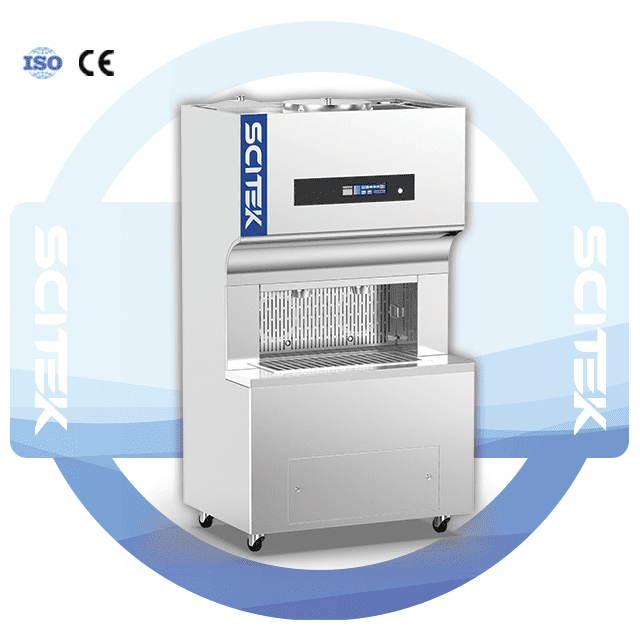

Padding Addition System
Padding Addition System Feature:
- Automatically detects material dropping and performs fully automated feeding, dispensing, quantifying, and dust removal—no manual operation required.
- Equipped with high-efficiency H13 negative pressure filters to prevent dust from escaping into the lab.
- Lower limit sensor triggers an alarm when padding reaches the minimum level.
- Vacuum pressure fan lifts padding automatically at a rate of 50L/min.
Padding Addition System Specifications:
| Model | IVC-PA800 | ||
| Upper Storage Capacity. | 0.035m³ | ||
| Lower Storage Capacity. | 0.2mm³ | ||
| Control System | PLC | ||
| Display | 4.3 inch LCD touch screen | ||
| Lifting Speed | 50L/min | ||
| Filter | HEPA Filter x2 | ||
| Filling Height | 385mm | ||
| Work Surface Height | 810mm | ||
| Structure | Material | External | 304 stainless steel |
| Internal | 304 stainless steel | ||
| Caster | Four universal casters at the bottom of the instrument for easy movement | ||
| Total Consumption | 500W | ||
| Power Supply | 220V, 50/60Hz | ||
| External Size(WxDxH)(mm) | 1120x781x1975 | ||
| Shipping Size(WxDxH)(mm) | 1300x950x2190 | ||
| N.W./G.W. (kg) | 180/230 | ||
