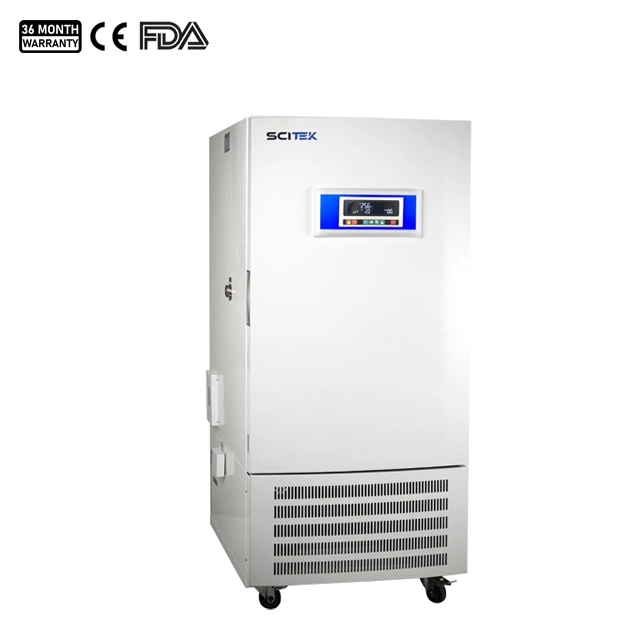

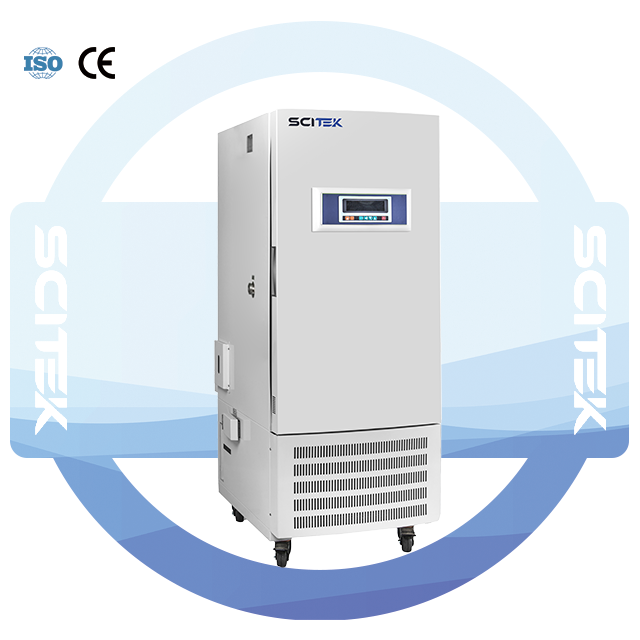

Medicine Stability Testing Chamber Feature:

Dual refrigeration system with imported compressor for longer service life.
PID control and imported humidity sensor for precise temperature and humidity regulation.
Over-temperature alarm stops operation and triggers audible/visual alerts when limits are exceeded.
Large LCD screen displays multiple data points simultaneously.
Multi-segment programmable control for temperature and humidity with customizable cycles.

Medicine Stability Testing Chamber Specifications:

Model	MSTC-175HT / MSTC-175HTI	MSTC-175L / MSTC-175LI	MSTC-175TL
	MSTC-275HT / MSTC-275HTI	MSTC-275L / MSTC-275LI	MSTC-275TL
	MSTC-375HT / MSTC-375HTI	MSTC-375L / MSTC-375LI	MSTC-375TL
	MSTC-475HT / MSTC-475HTI	MSTC-475L / MSTC-475LI	MSTC-475TL
	MSTC-800HT / MSTC-800HTI	MSTC-800L / MSTC-800LI	MSTC-800TL
	MSTC-1075HT / MSTC-1075HTI	MSTC-1075L / MSTC-1075LI	MSTC-1075TL
Mode	Temperature & Humidity	Temperature, Humidity & Light	Temperature & Light
Temperature Range	0~65℃	WithoutIllumination: 4~50℃
Temperature Fluctuation	High ±0.5℃, Low ±2℃
Temperature Uniformity	±2℃
Humidity Range(RH)	30 – 95%		/
Humidity Stability(RH)	±3%RH		/
Temperature Resolution	0.1℃
Illumination	/	0 – 6000Lux adjustable
Illumination Difference	/	≤ ±500Lux
Timing Range	1 – 99 hours/period
Temp.and Humidity Adjusting	Balance temperature and humidity adjusting		Balance temperature adjusting
Cooling System	Imported compressor
Sensor	PT100Capacitance sensor		PT100
Ambient Temperature	RT+5~30℃
Power Supply	AC220V±10%, 50HZ
Power Rating(W)	1400/1950/2600/2800/3000/3200	1650/2200/2700/2900/3100/3300	1300/1750/2400/2600/2700/2800
Chamber Volume(L)	175/275/375/475/800/1075
Shelf	3
Printer	Yes
Safety Device	Compressor overheating and overpressureprotection, Fan overheating protection, Overtemperature protection, Overload protection, water shortageprotection
Chamber Size (WxDxH) (mm)	450x420x930, 580x510x935, 590x550x1160, 700x550x1250, 965x610x1370, 950×700×1600
N.W./G.W.	MSTC-175HT: 178kg/232kg	MSTC-175L: 182kg/237kg	MSTC-175TL: 178kg/203kg
	MSTC-275HT: 210kg/285kg	MSTC-275L: 210kg/260kg	MSTC-275TL: 210kg/260kg
	MSTC-375HT: 249kg/283kg	MSTC-375L: 249kg/283kg	MSTC-375TL: 249kg/283kg
	MSTC-475HT: 295kg/358kg	MSTC-475L: 295kg/358kg	MSTC-475TL: 295kg/358kg
	MSTC-800HT: 360kg/468kg	MSTC-800L: 360kg/465kg	MSTC-800TL: 360kg/468kg
	MSTC-1075HT: 470kg/586kg	MSTC-1075L: 470kg/586kg	MSTC-1075TL: 470kg/586kg
	MSTC-175HTI: 178kg/203kg	MSTC-175LI: 178kg/203kg
	MSTC-275HTI: 210kg/260kg	MSTC-275LI: 210kg/260kg
	MSTC-375HTI: 249kg/283kg	MSTC-375LI: 249kg/283kg
	MSTC-475HTI: 295kg/358kg	MSTC-475LI: 295kg/358kg
	MSTC-800HTI: 360kg/468kg	MSTC-800LI: 360kg/468kg
	MSTC-1075HTI: 470kg/586kg	MSTC-1075LI: 470kg/586kg
Shipping Size (WxDxH)(mm)	MSTC-175HT: 750x1860x840	MSTC-175L: 750x1860x840	MSTC-175TL: 840x740x1880
	MSTC-275HT: 880x1010x1860	MSTC-275L: 880x1010x1860	MSTC-275TL: 880x1010x1860
	MSTC-375HT: 870x980x2080	MSTC-375L: 870x980x2080	MSTC-375TL: 870x980x2080
	MSTC-475HT: 1010x1000x2250	MSTC-475L: 1010x1000x2250	MSTC-475TL: 1010x1000x2250
	MSTC-800HT: 1250x1030x2300	MSTC-800L: 1250x1040x2300	MSTC-800TL: 1250x1030x2300
	MSTC-1075HT:1200x1100x2550	MSTC-1075L: 1200x1100x2550	MSTC-1075TL: 1200x1100x2550
	MSTC-175HTI: 840x740x1880	MSTC-175LI: 840x740x1880
	MSTC-275HTI: 880x1010x1860	MSTC-275LI: 880x1010x1860
	MSTC-375HTI: 870x980x2080	MSTC-375LI: 870x980x2080
	MSTC-475HTI: 1010x1000x2250	MSTC-475LI: 1010x1000x2250
	MSTC-800HTI: 1250x1030x2300	MSTC-800LI: 1250x1030x2280
	MSTC-1075HTI: 1200x1100x2550	MSTC-1075LI: 1200x1100x2550
