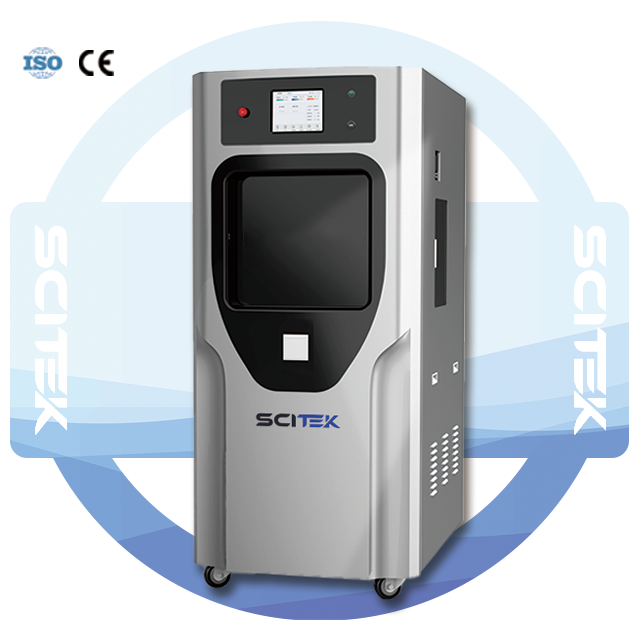

Low Temperature Formaldehyde Steam Sterilizer

Model : ST-FT100; ST-FT130; ST-FT150
Capacity : 100L/130L/150L
Chamber Size(WxDxH) : 700x430x360mm; 750x450x400mm; 820x645x400mm
Sterilizer Solution : 2% formaldehyde, 3% alcohol, and 95% distilled water solution
Sterilizer Solution Packaging Specification : 2L
External Size(WxDxH)(mm) : 1070x790x1770

Low Temperature Formaldehyde Steam Sterilizer Feature:

Loading Method: Movable stainless steel basket with support rods to prevent item stacking.
Control System: Siemens PLC with user-friendly interface; one-click start automates the entire process, displaying temperature, pressure, and sterilization time. Supports maintenance and upgrades.
Heating System: PID controllers independently regulate the door, inner tank, and steam generator for stability.
Display Function: Shows temperature, pressure, time, operating mode, and alarm notifications.
Power Outage Memory: Minimizes costs and reduces misoperation risks.
Steam Generator: Self-developed fast evaporator enhances formaldehyde vaporization and sterilization efficiency.

Low Temperature Formaldehyde Steam Sterilizer Specification:

Model	ST-FT100	ST-FT130	ST-FT150
Capacity	100L	130L	150L
Chamber Size(WxDxH)(mm)	700x430x360	750x450x400	820x645x400
Consumption	5.3KW
Sterilizer Solution	2% formaldehyde, 3% alcohol, and 95% distilled water solution
Sterilizer Solution Packaging Specification	2L
Single Cycle Dosage	0.6-1.3Kg
Operating Temperature	60℃ and 76℃
Sterilization Time	2-3.5 hours
Water Consumption	3.95Kg/min
Heating Method	Electric heating
Anti-pressure	5pa
Operation Height	≤160cm
Chamber Material	5052 corrosion resistant aluminum alloy, with antioxidant treated
Cabinet Material	ABS
Door Panel Material	5052 corrosion resistant aluminum alloy, with antioxidant treated, ≥10mm
Pipe Materials	SS304 stainless steel
Insulation Materials	High quality insulation cotton
Door Form	Automatic door
Display	8 inch Touch Screen
External Size(WxDxH)(mm)	1070x790x1770
Package Size(WxDxH)(mm)	1200x900x1980
