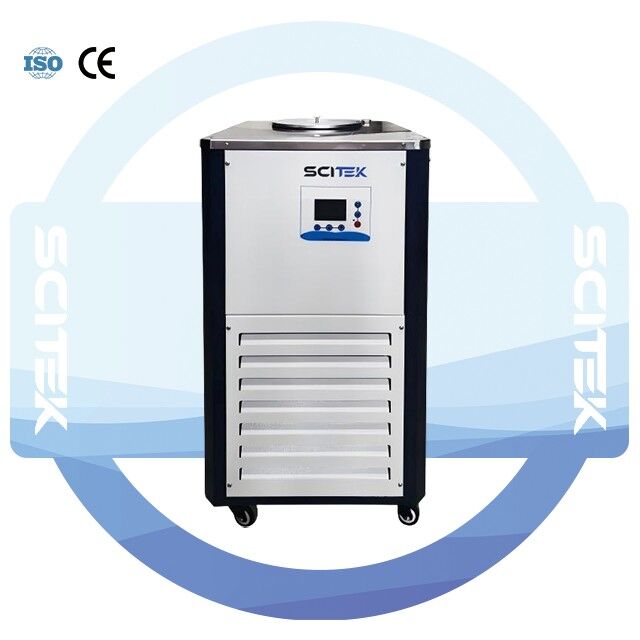

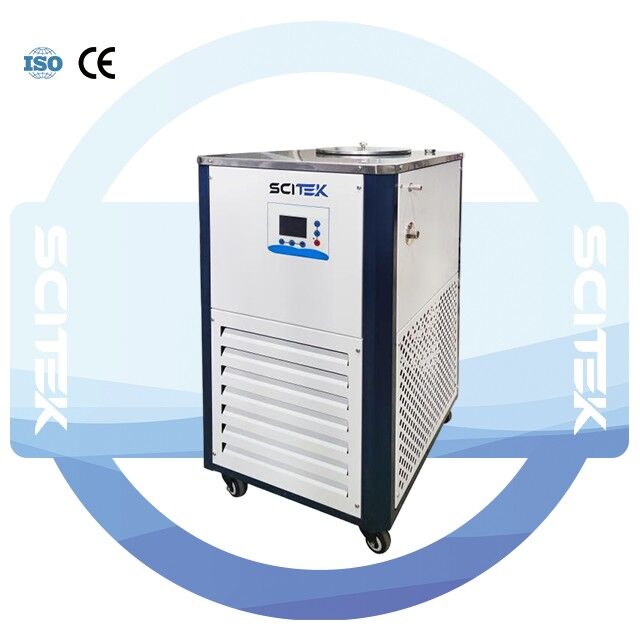

Designed to efficiently circulate coolant in systems requiring precise temperature control at low temperatures, compatible with rotary evaporators, vacuum freeze drying oven, etc.
| Model | LTC-2010 | LTC-2020 | LTC-2040 |
| Temperature Range | -10 ℃–RT | -20 ℃–RT | -40 ℃–RT |
| Liquid Storage Capacity | 20 L | ||
| Refrigeration Power (W) | 1750 | 2300 | |
| Temperature Control Accuracy | ±2 ℃ | ||
| Lift Head | 8 m | ||
| Temperature Control | Intelligent PID digital display | ||
| Temperature Sensor | PT100 | ||
| Safety Function | Overload protector, compressor overpressure, overheating, overcurrent protection | ||
| Compressor | 2P | 3P | |
| Refrigerant | R22 | R404 | |
| Circulating Pump Flow Rate | 17 L/min | ||
| Cycle Mode | External circulation | ||
| Bath Opening Diameter | 300 mm | ||
| Bath Size | 350×210 mm | ||
| Bath Material | Stainless steel | ||
| Coil Material | Copper | ||
| Power Supply | 220 V | ||
| Usage Environment | Environmental temperature 25 ℃, 60–80% ventilation | ||
| Dimensions | ≈640×530×990 mm | ||
