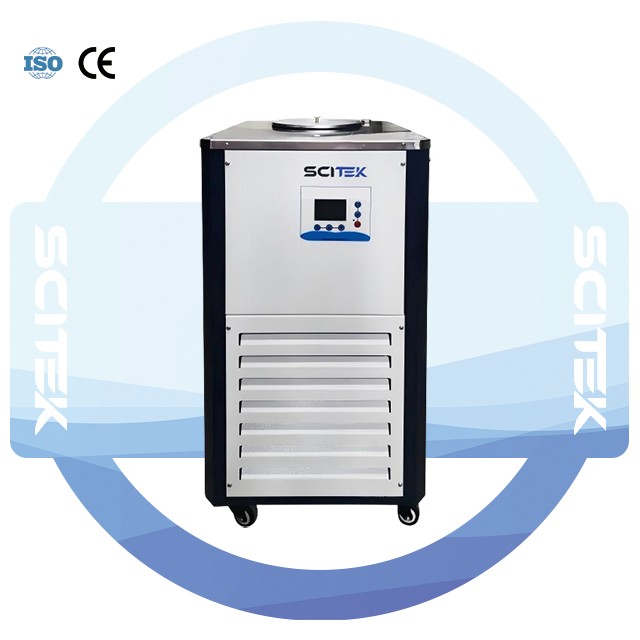

Low-Temperature Coolant Circulation Pump
Low-Temperature Coolant Circulation Pump - 图片 2

Low-Temperature Coolant Circulation Pump

Designed to efficiently circulate coolant in systems requiring precise temperature control at low temperatures, compatible with rotary evaporators, vacuum freeze drying oven, etc

  • Model : LTC-510; LTC-520; LTC-530; LTC-540
  • Lift Head : 4 m
  • Temperature Sensor : PT100
  • Liquid Storage Capacity : 5 L
  • Circulating Pump Flow Rate : 7 L/min
  • Cycle Mode : External circulation
  • Bath Opening Diameter : 215 mm
  • Temperature Range : -10, -20, -30, -40 ℃–RT

Share the product


Warning: call_user_func_array() expects parameter 1 to be a valid callback, function 'wpb_pcf_contact_form_button' not found or invalid function name in /www/wwwroot/www.scitekuae.com/wp-includes/class-wp-hook.php on line 341
分类： , 标签： ,

Coolant Circulation Pump Feature:

  1. Integrated large open bath with external circulation for cooling and liquid supply.
  2. Reliable, well-known brand compressor.
  3. Uses high-performance Chinese-brand circulation pump and electrical components.
  4. Digital display with intelligent temperature control, clear and simple operation.
  5. Leak-free circulation system using AISI 304/316 stainless steel and corrosion-resistant polymers.
  6. Built-in protections for overpressure, overload, overcurrent, overheating, and phase sequence.
  7. Cooling capacity and bath volume configurable to meet different low-temperature requirements.

Coolant Circulation Pump Specification:

Model LTC-510 LTC-520 LTC-530 LTC-540
Temperature Range  -10 ℃–RT  -20 ℃–RT  -30 ℃–RT  -40 ℃–RT
Liquid Storage Capacity 5 L
Total Machine Power (W) 500  700  841
Lift Head 4 m
Temperature Control Intelligent PID digital display
Temperature Sensor PT100
Safety Function Overload protector, compressor overpressure, overheating, overcurrent protection.
Compressor 0.75 P 1 P
Refrigerant R290 R22 R404
Circulating Pump Flow Rate 7 L/min
Cycle Mode External circulation
Bath Opening Diameter 215 mm
Pot Size 250×130 mm
Bath Material Stainless steel
Coil Material Chrome-plated copper
Power Supply 220 / 110 V
Usage Environment Environmental temperature 25 ℃, 60-80% ventilation
Dimensions ≈510×310×740 mm
