- Model : LNC-30-50BF; LNC-50-50BF; LNC-100-50BF; LNC-150-50BF; LNC-200-50BF; LNC-230-50BF; LNC-300-50BF; LNC-500-50BF
- Geometric volume (L) : 33; 55; 110; 165; 220; 250; 330; 550
- Effective volume (L) : 30; 50; 100; 150; 200; 230; 300; 500
- Tank external diameter (mm) : 404; 455; 556; 656; 656; 656; 806; 958

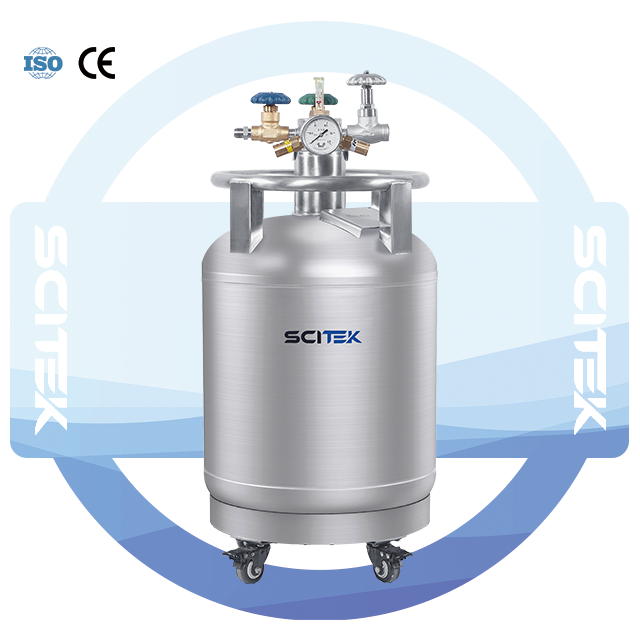

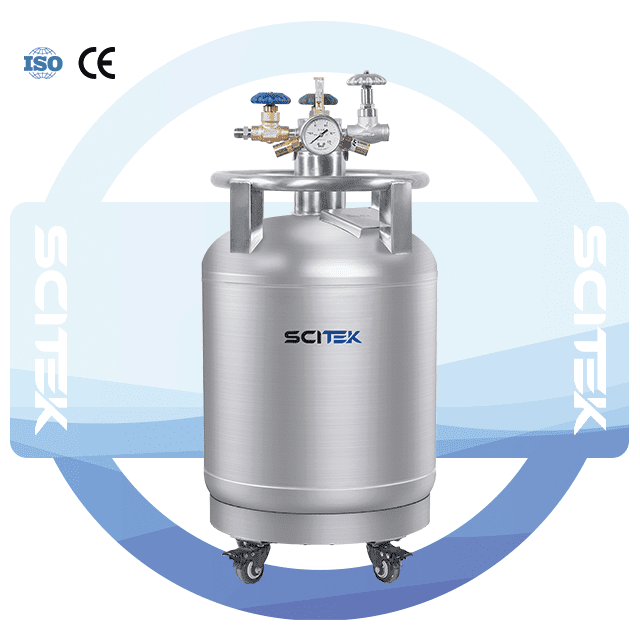

Liquid Nitrogen Filling Tank BF Series
Liquid Nitrogen Filling Tank Feature:
The self-pressurized liquid nitrogen container is crafted from high-quality stainless steel. It uses the container’s internal pressurization system to vaporize a small amount of liquid nitrogen, generating pressure to discharge the stored liquid nitrogen. The container comprises a control system and a tank body.
Liquid Nitrogen Filling Tank Specifications:
| Model | LNC-30-50BF | LNC-50-50BF | LNC-100-50BF | LNC-150-50BF | LNC-200-50BF | LNC-230-50BF | LNC-300-50BF | LNC-500-50BF |
| Geometric volume (L) | 33 | 55 | 110 | 165 | 220 | 250 | 330 | 550 |
| Effective volume (L) | 30 | 50 | 100 | 150 | 200 | 230 | 300 | 500 |
| Tank external diameter (mm) | 404 | 455 | 556 | 656 | 656 | 656 | 806 | 958 |
| Height(mm) | 850 | 960 | 1120 | 1110 | 1280 | 1580 | 1410 | 1500 |
| Empty weight (kg) | 30 | 38 | 63 | 86 | 96 | 130 | 205 | 265 |
| Static daily evaporation rate of liquid nitrogen (%/D) | 3.2 | 2.2 | 1.2 | 1 | 0.8 | 0.6 | 0.8 | 0.8 |
| Standard work pressure (Mpa) | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Maximum working pressure (Mpa) | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 |
| Infusion volume (L/min) | ≥5 L/Min | ≥5L/Min | ≥5 L/Min | ≥5 L/Min | ≥10 L/Min | ≥10 L/Min | ≥10L/Min | ≥10 L/Min |
| Primary safety valve opening pressure (Mpa) | 0.099 | 0.099 | 0.099 | 0.099 | 0.099 | 0.099 | 0.099 | 0.099 |
| Secondary safety valve opening pressure (Mpa) | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 |
| Pressure gauge indication range (Mpa) | 0~0.25 | 0~0.25 | 0~0.25 | 0~0.25 | 0~0.25 | 0~0.25 | 0~0.25 | 0~0.25 |
