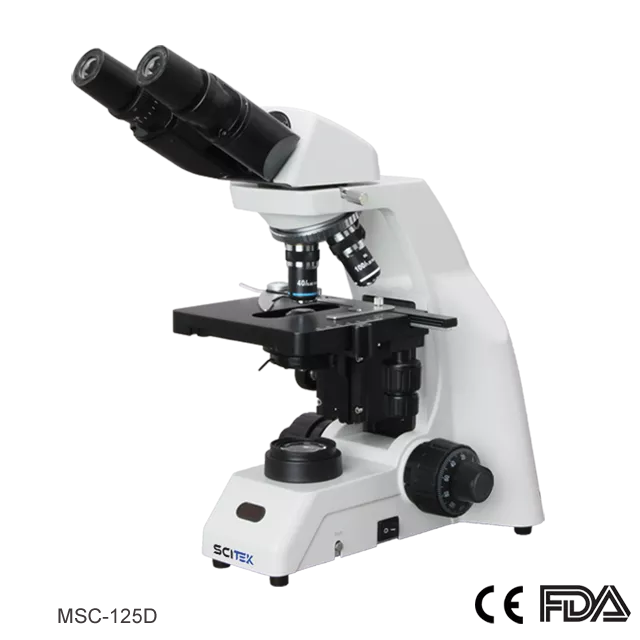

LCD Digital Microscope, Binocular Viewing Head

Model : MSC-125D; MSC-300D
Viewing Head : Siedentopf Binocular Viewing Head Inclined at 30°, Interpupillary 47-78mm / 48-75mm
Eyepiece : Wide Field Eyepiece WF 10×/18
Objectives : Achromatic Objective 4×, 10×, 40×, 100× / Infinite Semi-plan Achromatic Objectives 4×, 10×, 40×, 100×

Digital Microscope Feature:

High Precision Focusing – The fine adjustment division of 0.002mm ensures ultra-precise image clarity.
Smooth Coaxial Design – Coarse and fine focusing knobs are conveniently positioned for effortless and accurate control.
Extended Focusing Range – A 25mm moving range allows for easy adjustments across various specimen depths.
Enhanced Efficiency – The streamlined focusing system speeds up specimen examination with minimal effort.
Sharp and Detailed Imaging – Enables users to achieve high-resolution, crisp images for detailed analysis.

Digital Microscope Specification:

Model	MSC-125D	MSC-300D
Viewing Head	Siedentopf Binocular Viewing Head Inclined at 30°, Interpupillary 47-78mm	Siedentopf Binocular Viewing Head, 30° Inclined, Interpupillary 48-75mm
Optical System	Finite Optical System	Infinite Optical System
Eyepiece	Wide Field Eyepiece WF 10×/18
Condenser	NA1.25 Abbe Condenser	Sliding-in Centerable condenser NA1.25
Nosepiece	Backward Quadruple Nosepiece	Quadruple Nosepiece
Objective	Achromatic Objective 4×,10×,40×,100×	Infinite Semi-plan Achromatic Objectives 4×,10×,40×,100×
Stage	Double Layers Mechanical Stage 140mm×140mm/ 75mm×50mm
Focusing System	Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range 25mm	Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm
Illumination	S-LED Illumination, Brightness Adjustable
Power Supply	AC 220/110V, 50/60Hz
Shipping Size(W×D×H)(mm)	380x270x470	350x350x640
G.W. (kg)	8.5	12
