- Model : IVC-100
- Inner Chamber Capacity(L) : 1200L
- Cleaning Method : Spray cleaning
- Lotion Pump : 1100ml/min
- Cleaning Spout : ≥44 units
- Size(W×D×H)(mm) : 2050x850x1950

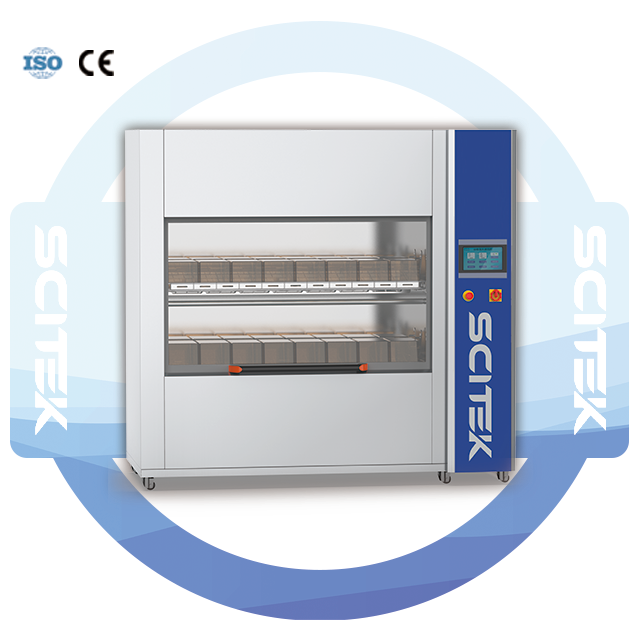

IVC Cleaning System
Application of IVC Cleaning System:
Our cleaning system ensures the cleanliness of the animal room. The perfect hygiene conditions come from high-quality system cleaning processes. We have specially designed a fully automatic animal cage cleaning equipment based on the requirements of experimental animal industry users for cage cleaning. It uses hot water combined with acidic or alkaline cleaning agents, high pressure, and high flow spraying methods to achieve a fully automatic spray cleaning process for cage boxes, box covers, metal racks, and drinking water bottles
IVC Cleaning System Feature:
- Negative pressure HEPA filter exhaust in the whole process, adsorb litter droplets and peculiar smell.
- There are large glass windows on both sides of the equipment, and the top is equipped with illuminators to increase light transmission.
- Handrails are installed on both sides, and the bottom is equipped with casters to facilitate the movement of the equipment.
- There is a removable large-capacity dirt bucket at the bottom of the equipment.
IVC Cleaning System Specifications:
| Model | IVC-100 | ||
| Capacity(L) | 1200L | ||
| Display | 10.2 inch LCD touch screen | ||
| Standard Program | 24 | ||
| Cleaning System | Cleaning Method | Spray cleaning | |
| Main Washing Temperature | ≤50℃ (Adjustable) | ||
| Rinse Temperature | ≤80℃ (Adjustable) | ||
| Lotion Pump | 1100ml/min | ||
| Cleaning Spout | ≥44 units | ||
| Rinse Spout | ≥86units | ||
| Cleaning Layers | 2 Layers | ||
| Maximum Cleaning Height | 340mm/layer | ||
| Washable Cages | 28 units | ||
| Water Inlet Pipe | Quantity | 1 | |
| Length | 2m | ||
| Material | Food grade silicone tube | ||
| Water Outlet Pipe | Quantity | 1 | |
| Length | 2m | ||
| Material | PE | ||
| Water Pump | Brand | World-renowned brand | |
| Flow Rate | 500L/min | ||
| Consumption | 1.5 kW | ||
| Structure | Material | External | 304 stainless steel |
| Cleaning Chamber | 304 stainless steel | ||
| Door | Single door | ||
| Caster | Four universal casters at the bottom of the instrument for easy movement | ||
| Total Consumption | 20Kw | ||
| Power Supply | 380V, 50/60Hz | ||
| External Size(W×D×H)(mm) | 2050x850x1950 | ||
| Shipping Size(W×D×H)(mm) | 2200x1030x2170 | ||
| N.W./G.W. (kg) | 850/900 | ||
