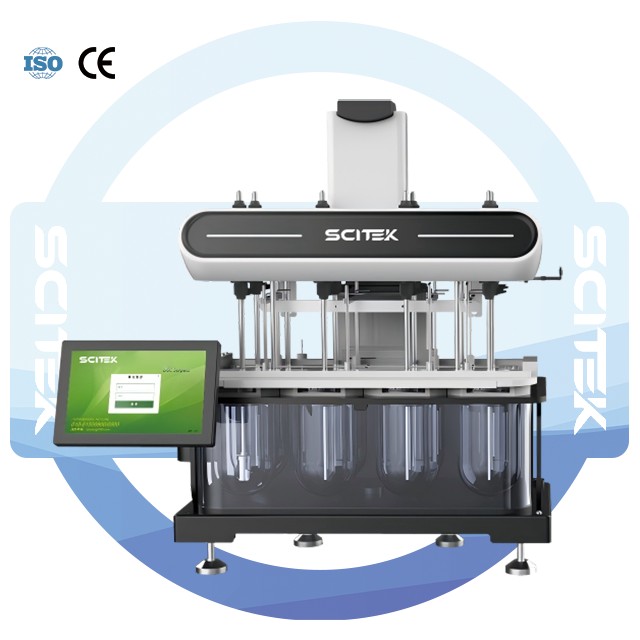

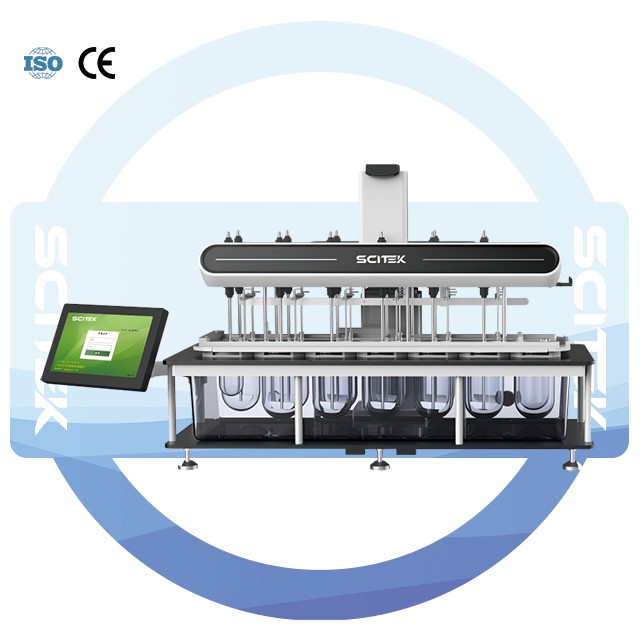

This dissolution tester is an intelligent integrated control device with a 14-inch touch screen and four-level permission management function, providing a convenient and efficient solution for pharmaceutical experiments.
This instrument can be applied in pharmaceutical research and development, bioequivalence assessment of generic drugs, and drug quality control.
| Model | DT-I14 | DT-I8 |
| Number of Dissolution Vessel Positions | 14-Vessel, 12-paddle | 8 |
| Speed Range | 0-400 rpm ± 1 rpm / 400-1000 rpm ± 4% rpm | |
| Temperature Range | RT-50.0 ℃ | |
| Temperature Accuracy | ≤ ±0.1 ℃ | |
| Paddle Radial Run-out | ≤ 0.5 mm | |
| Basket Radial Run-out | ≤ 0.8 mm | |
| Deviation Between Stirring Shaft and Dissolution Vessel Axis | ≤ 1.0 mm | |
| Power Supply | 220 V ± 10% AC; 50Hz; 1800W | |
| Dimensions (WxDxH) | 600×1400×830 mm | 550×900×810 mm |
| Shipping Size(WxDxH) | 1300×710×1050 mm | 760×740×930 mm |
| N.W. | 150 kg | 80 kg |
